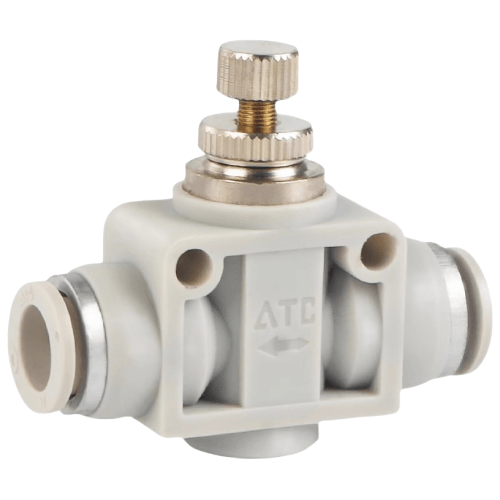

Airtac X-ASA Adapter - Tube Throttle Type X-ASA6
$6.32
Regular price
$13.82
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-ASA6
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
AirTAC X-ASA6 Throttle-Type Tube Fitting Specifications
- Model: X-ASA6
- Type: Throttle-type push-in fitting with flow control
- Material: Brass with nickel plating (anti-corrosion treatment)
- Port sizes: 6mm tube OD (1/8" BSPP thread optional)
- Operating pressure: 0.05–1.0 MPa
- Temperature range: -20℃ to 80℃
- Seal material: NBR (standard) / FKM (optional)
- Flow adjustment range: 20-200 L/min (air, ANR)
- Thread torque: 1.5-2.0 N·m (installation)
- Weight: 12g ±0.5g
- Dimensions: 30mm(L) × 18mm(W) × 18mm(H)
- Hose retention force: ≥40N (6mm OD tube)
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision flow control fitting with integrated throttle valve, featuring a 210° adjustable knob for fine-tuning pneumatic circuit flow rates. The double O-ring design ensures leak-free connections even under pulsating pressures. Compatible with PU, NY, and PE tubing.
Typical Applications:
- Speed regulation in pneumatic cylinders (extend/retract control)
- Air blow system flow optimization
- Vacuum generator pressure balancing
- Medical device pneumatic circuits
- Packaging machine actuator synchronization
Installation note:
Rotate throttle knob counterclockwise to full open position before tube insertion.
Use tube cutter (not scissors) for clean perpendicular cuts. Maximum recommended
tightening torque: 2.5N·m. For vertical installations, position flow arrow upward.
WARNING: Not suitable for hydraulic fluids or aggressive chemicals.
Always bleed system pressure before adjustment. Avoid overtightening -
proper seal is achieved at 1/4 turn past finger-tight position.
| Property | Property Value |
|---|---|
| sku | X-ASA6 |
