Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000201T
$847.23
Regular price
$854.73
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
X-KAPT6301000201T
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

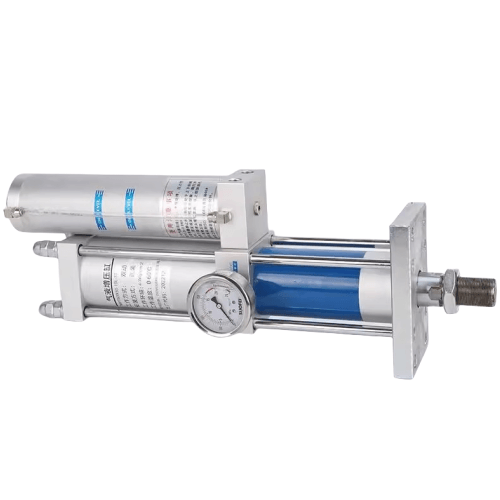

AirTAC X-KAPT6301000201T Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000201T
- Type: Two-stage intensifier (pneumatic-hydraulic combined)
- Bore size: 63mm (air end) / 32mm (hydraulic end)
- Stroke: 200mm (max working stroke)
- Intensification ratio: 20:1 (adjustable via pressure regulation)
- Operating pressure:
- Air input: 0.2-0.7 MPa
- Hydraulic output: 4-14 MPa
- Port connections: G1/4 (air inlet), M16x1.5 (hydraulic port)
- Operating medium: Clean air (ISO 8573-1:2010 Class 3) + ISO VG 32 hydraulic oil
- Temperature range: -10℃ to 60℃ (with frost prevention below 0℃)
- Cycle rate: 15-30 cycles/min (dependent on stroke length)
- Weight: 12.5kg ±5% (including pre-filled hydraulic oil)
- Dimensions: 320mm(L) × 210mm(W) × 185mm(H) (excluding mounting accessories)
- Rod material: Chrome-plated steel (HRC 45-50)
- Seal type: HNBR + PU composite seals
High-efficiency hybrid cylinder combining pneumatic speed with hydraulic force precision. Features automatic oil replenishment system and pressure maintenance valve. The dual-cavity design prevents gas-liquid mixing, with integrated shock absorber for smooth stroke termination.
Industrial Applications:
- Bushing/shaft pressing in automotive assembly (200-800kN force range)
- Sheet metal forming with controlled deformation rates
- Electrical contact crimping requiring micron-level repeat accuracy
- Composite material compaction under temperature-controlled conditions
- Precision bearing preload adjustment in aerospace components
Installation protocol:
Mount vertically with ±3° tolerance. Allow 50mm clearance for oil reservoir expansion.
Requires weekly oil level inspection and quarterly seal lubrication (use ISO VG 32-compatible grease).
Not compatible with phosphate ester fluids.
Pressure Calibration:
Output force can be precisely adjusted through input pressure modulation:
Foutput = (Pair × Apneumatic × Ratio) × η
(where η=0.85-0.92 efficiency factor)
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000201T |
