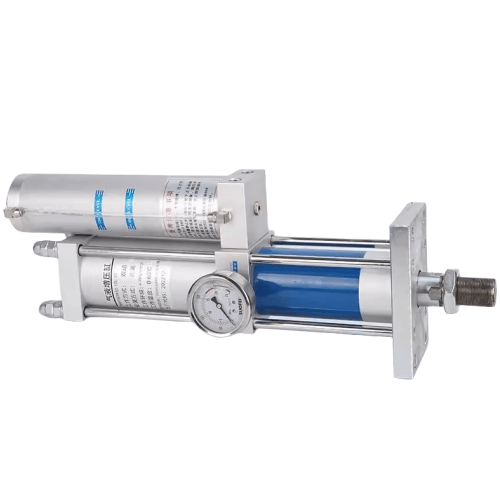

Airtac X-KAPT Pneumatic-Hydraulic Intensifier X-KAPT6301000203TS
AirTAC X-KAPT6301000203TS Pneumatic-Hydraulic Intensifier Cylinder Specifications
- Model: X-KAPT6301000203TS
- Type: Two-stage gas-liquid combined intensifier
- Bore diameter: Ø63mm (pre-pressure chamber) / Ø100mm (booster chamber)
- Stroke: 20mm (pre-pressure) + 200mm (total boost stroke)
- Boost ratio: 1:13 (adjustable via pressure regulation)
- Max. operating pressure: 200 bar (hydraulic output)
- Air supply pressure: 2-8 bar (standard industrial line)
- Oil capacity: 380±20ml (ISO VG 68 hydraulic oil)
- Port size: G1/4" (air inlet) / M16x1.5 (hydraulic output)
- Temperature range: -10℃ to 80℃ (air/oil media)
- Cushioning: Adjustable hydraulic damping
- Weight: 15.8kg (without accessories)
- Dimensions: 420mm(L) × 180mm(W) × 180mm(H)
- Seal material: Polyurethane (air side) / Nitrile rubber (oil side)
- Repeat accuracy: ±0.02mm (under stable pressure)
Hybrid intensifier combining pneumatic efficiency with hydraulic precision, featuring a unique "soft start-hard press" action. The dual-chamber design separates compressed air (pre-stroke phase) from oil pressurization (boost phase), delivering up to 20-ton force output. Integrated pressure relief valve prevents oil overheating during continuous operation.
- Stamping of sheet metal components (e.g., automotive brackets)
- Bearing press-fitting in precision machinery assembly
- Plastic injection molding machine auxiliary clamping
- Electrical contact crimping with force monitoring
- Bushing installation in heavy-duty gearboxes
Installation note:
Mount vertically with ±3° tolerance. Pre-lubricate oil port before initial use.
Allow 30-second warm-up cycle for every 5 minutes of continuous high-load operation.
Maintenance alert:
Replace hydraulic oil every 50,000 cycles or annually. Never mix different
viscosity oils - improper fluid causes 72% of seal failures per factory data.
| Property | Property Value |
|---|---|
| sku | X-KAPT6301000203TS |
