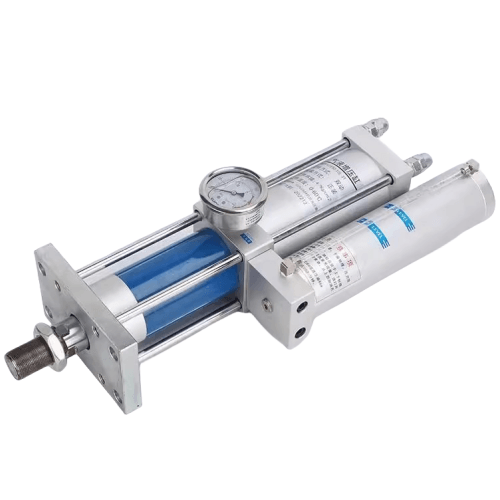

Airtac X-KAPTA Pneumatic-Hydraulic Booster Cylinder X-KAPTA0005002013T
AirTAC X-KAPTA Pneumatic-Hydraulic Intensifier Cylinder X-KAPTA0005002013T Specifications
- Model: X-KAPTA0005002013T
- Type: Two-stage intensifier (pneumatic-hydraulic hybrid)
- Pressure ratio: 30:1 (air-to-oil)
- Working pressure:
- Air input: 0.2-0.8 MPa
- Oil output: Up to 24 MPa
- Stroke:
- Air piston stroke: 50 mm
- Oil plunger stroke: 20 mm
- Mounting: Front flange mounting (ISO 15552 standard)
- Port size: G1/4 (air inlet), M16x1.5 (hydraulic port)
- Material:
- Cylinder body: Aluminum alloy with hard anodizing
- Piston rod: Chrome-plated steel
- Seals: Polyurethane (standard), optional Viton
- Operating temperature: -10℃ to 60℃
- Weight: 25 kg (with standard configuration)
- Dimensions: 300 mm (L) × 180 mm (W) × 180 mm (H)
- Oil capacity: 450 ml (ISO VG 32 recommended)
- Cycle rate: 15-30 cycles/min (depending on pressure)
- Protection class: IP54 (standard sealing)
High-efficiency hybrid cylinder combining pneumatic speed with hydraulic force precision. Features dual-stage pressure amplification through compressed air-driven hydraulic intensification. Integrated overload protection prevents mechanical damage during peak loads. Requires separate air preparation unit with 40μm filtration and automatic lubrication system.
- Metal forming presses in automotive manufacturing
- Bearing assembly with controlled interference fits
- Precision blanking operations in electronics production
- Composite material compression molding
- High-torque fastener installation systems
Installation note:
Maintain horizontal mounting orientation for optimal oil distribution.
Allow minimum 50mm clearance around cylinder for heat dissipation.
Always bleed air from hydraulic circuit during commissioning.
- 1. Compressed air drives primary piston downward
- 2. Hydraulic oil compressed in intensification chamber
- 3. Secondary plunger delivers amplified force
- 4. Spring return mechanism resets position
