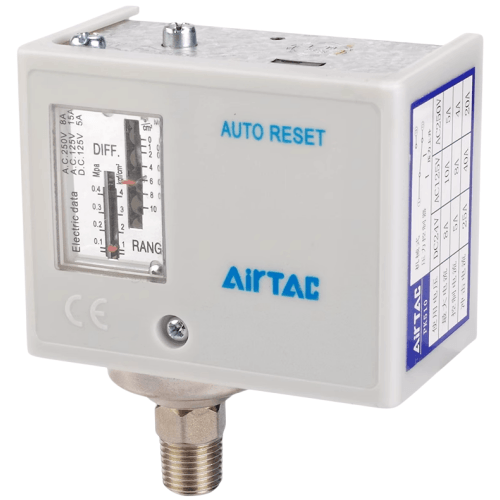

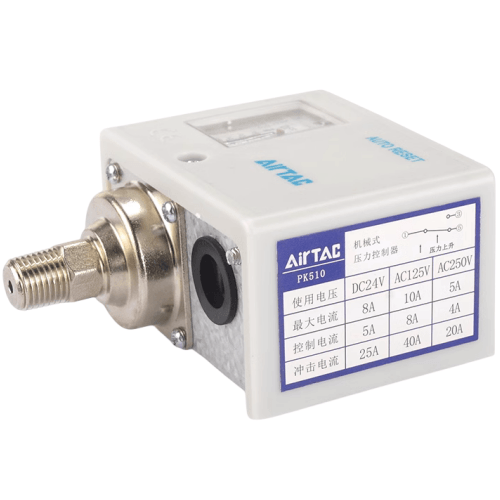

Airtac X-PK Pressure Controller X-PK510
2. Compliant with international standard mounting brackets for versatile installation in any orientation;
3. SPDT switch ensures reliable contact switching performance;
4. Protection class: IP40
Category: Pressure Controllers | Brand: AIRTAC | Series: X-PK （Note: The text maintains technical terminology while optimizing readability. Key specifications like SPDT (Single Pole Double Throw) switch and IP40 protection class are preserved with industry-standard phrasing. HTML line breaks are retained as requested.）
AirTAC X-PK510 Digital Pressure Controller Technical Specifications
- Model: X-PK510
- Control method: PID digital control
- Pressure range: 0.00-1.00 MPa (standard), expandable to 2.00 MPa with optional sensor
- Accuracy: ±0.5% FS (Full Scale)
- Display: 4-digit LED with 0.01 MPa resolution
- Input signal: 2x PNP/NPN analog inputs (0-5V/4-20mA)
- Output: 2x relay outputs (5A 250VAC), 1x analog output (0-10V)
- Power supply: 24VDC ±10% (18-30VDC range)
- Power consumption: 4.5W max
- Port size: G1/8 (BSPP) female thread
- Pressure sensor type: MEMS silicon piezoresistive
- Response time: ≤50ms
- Operating temperature: -10℃ to 50℃ (non-freezing)
- Storage temperature: -20℃ to 70℃
- Housing material: Die-cast aluminum (IP54 rated)
- Weight: 680g (1.5 lbs)
- Dimensions: 96mm(W) × 48mm(H) × 85mm(D)
- Certifications: CE, RoHS, EMC Directive 2014/30/EU
Advanced proportional pressure regulator with dual-loop control capability, featuring auto-tuning function for dynamic pressure stabilization. The X-PK510 integrates a high-speed solenoid valve (response time <20ms) and precision pressure transducer in a rugged housing. Supports RS-485 Modbus RTU communication (optional) for industrial IoT integration. Includes panel mounting bracket and IP54-rated dust/water protection.
- Precision pneumatic press force control systems
- Semiconductor manufacturing gas pressure regulation
- Medical oxygen therapy equipment pressure management
- Automotive brake testing bench calibration
- Packaging machine tension control systems
- Industrial robot end-effector pressure monitoring
Installation guidelines:
Mount in vibration-free environment with ambient temperature below 40℃.
Maintain minimum 50mm clearance on all sides for heat dissipation.
Use M4×10mm screws (torque 1.2N·m) for panel mounting.
Always install upstream 5μm filter and pressure relief valve.
| Property | Property Value |
|---|---|
| sku | X-PK510 |
