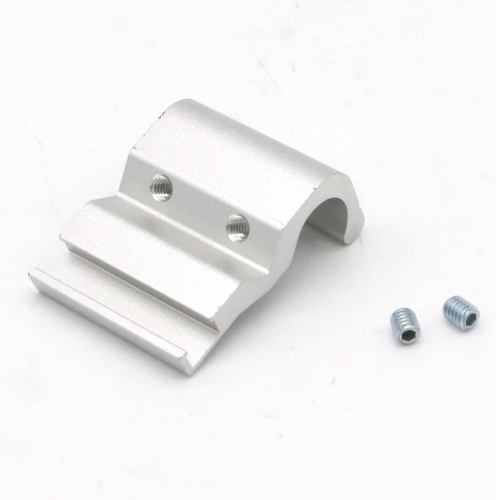

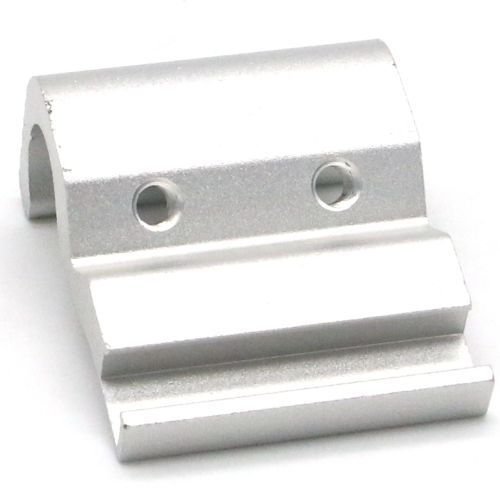

Airtac ZJ-F-TSAI Sensor Mounting Bracket F-TSAI50E
Category: Magnetic Sensors | Brand: AIRTAC | Series: ZJ-F-TSAI Sensor Bracket Series *Key technical highlights:* - Ferrite core magnetization for stable signal transmission - IP67-rated housing for industrial environments - Compatible with ISO 6431/VDMA cylinder standards - LED status indication (optional in select models) - Operating temperature: -10°C to +60°C
AirTAC ZJ-F-TSAI Sensor Mount F-TSAI50E Technical Details
- Model: ZJ-F-TSAI50E
- Series: F-TSAI Heavy Duty Series
- Compatible Sensors: Photoelectric/Fiber optic sensors with φ50mm housing
- Material: Aluminum alloy 6063-T5
- Surface treatment: Hard anodized (25μm thickness)
- Mounting: M6 threaded holes (4 places) with 60mm pitch pattern
- Adjustment range: ±15° vertical tilt adjustment
- Clamping force: 18-22N·m torque rating
- Weight: 320g ±5%
- Dimensions: 120mm(L) × 50mm(W) × 40mm(H)
- Operating temp: -40℃ to +85℃
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- IP rating: IP67 (sealed version available as F-TSAI50ES)
Robust sensor mounting solution with precision alignment capability, featuring military-grade oxidation treatment for harsh environments. The dual-axis locking mechanism prevents positional drift under vibration while allowing ±1.5mm horizontal fine-tuning. Compatible with ISO 9409-1 mounting patterns.
- Automated guided vehicle (AGV) collision detection systems
- Packaging line photoelectric sensor arrays
- CNC machine tool position verification
- Lithium battery production line monitoring
- Robotic welding cell safety interlocks
Installation protocol:
Apply 5-7Nm torque during M6 screw tightening. Use included shim washers
when mounting on curved surfaces (R＞200mm). Perform alignment verification
after 24hrs of continuous operation.
