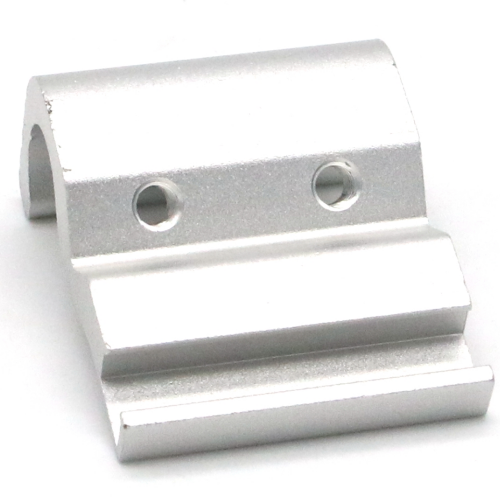

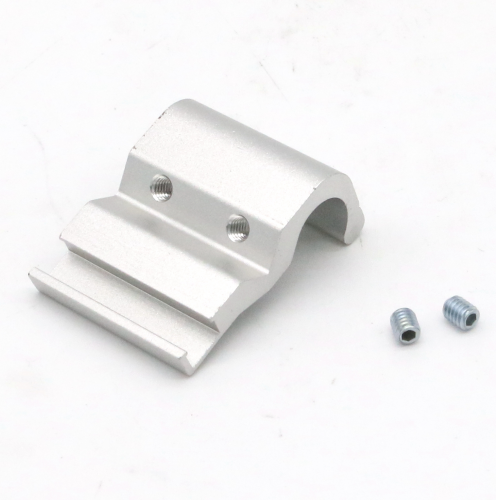

Airtac ZJ-F-TSAI Sensor Mounting Bracket F-TSAI80E
Category: Magnetic Sensors | Brand: AIRTAC | Series: ZJ-F-TSAI Sensor Bracket Series *Key technical highlights:* - Ferrite core magnetization for stable signal transmission - IP67-rated housing for industrial environments - Compatible with ISO 6431/VDMA cylinder standards - LED status indication (optional in select models) - Operating temperature: -10°C to +60°C
AirTAC ZJ-F-TSAI Sensor Mounting Bracket F-TSAI80E Technical Details
- Model: ZJ-F-TSAI F-TSAI80E
- Type: Adjustable proximity sensor mounting bracket
- Material: Aluminum alloy 6063-T5
- Surface treatment: Black anodized
- Compatible sensor diameter: Ø80mm
- Mounting hole pattern: 60mm × 60mm square
- Installation options: M5 threaded holes (4x) + T-slot compatibility
- Temperature resistance: -20℃ to 80℃
- Vibration resistance: ≤10G @ 10-60Hz
- IP rating: IP54 (with proper sensor sealing)
- Weight: 320g ±5g
- Dimensions: 120mm(L) × 80mm(W) × 25mm(H)
- Torque specification: 1.2-1.5N·m (M5 fasteners)
- Repeat positioning accuracy: ±0.1mm
Heavy-duty sensor mounting solution featuring multi-axis adjustability (X/Y/Z ±5mm) with graduated scale markings. Precision-machined slots enable micro-positioning of inductive/capacitive sensors in automated systems. Includes integrated cable management clips and corrosion-resistant hardware.
- Robotic end-effector position verification
- Conveyor belt object detection systems
- CNC machine tool safety interlocks
- Palletizing robot alignment sensors
- Automated guided vehicle (AGV) proximity sensing
Installation protocol:
Clean mounting surface with IPA before assembly. Use thread-locking compound on fasteners in high-vibration environments.
Maximum extension load: 2kg (sensor + cables).
- Inductive sensors: E2E-X□D□-M1 series
- Capacitive sensors: E2K-X□ME1
- Photoelectric sensors: EE-SX67
| Property | Property Value |
|---|---|
| sku | F-TSAI80E |
