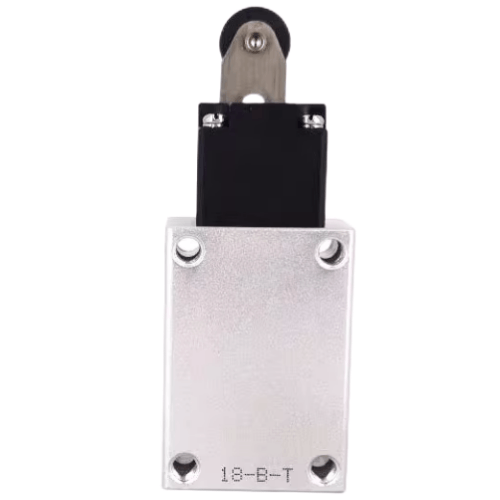

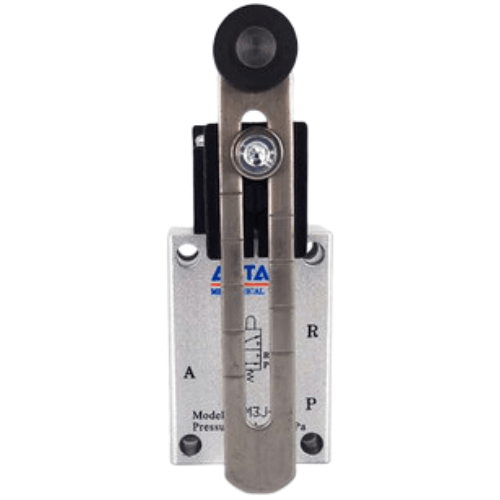

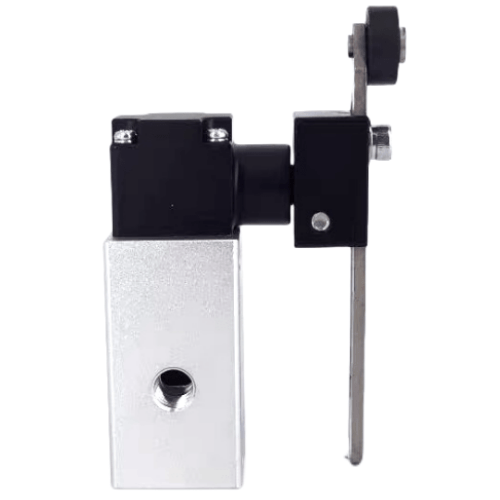

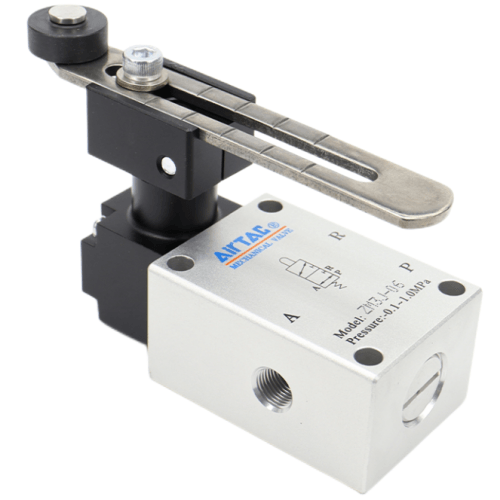

Airtac ZM3J Roller Adjustable Mechanical Valve ZM3J06W
2. Roller can be mounted on the inner side of the lever.
3. Lever mounting position is adjustable.
4. Adjustable head orientation for flexible installation.
5. Contact pin length is tunable for precise actuation.
**Category**: Mechanical Valves **Brand**: AirTAC **Series**: ZM3J *Note: Features emphasize modular configurability for diverse pneumatic system integration.*
AirTAC ZM3J06W Roller Adjustable Mechanical Valve Specifications
- Model: ZM3J06W
- Type: 3/2-way normally closed (mechanical roller actuation)
- Port size: PT1/8 (M5x0.8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 450 NL/min (ANR)
- Actuation force: 2.5N±0.5N at roller contact
- Adjustment stroke: 0-3mm (roller travel range)
- Body material: Aluminum alloy (anodized surface)
- Seal material: Nitrile rubber (NBR)
- Temperature range: -20℃ to 80℃ (operating fluid)
- Weight: 198g ±5g
- Dimensions: 60mm(L) × 30mm(W) × 40mm(H)
- Mounting torque: 1.5N·m max (port connections)
- Repeat accuracy: ±0.2mm (position adjustment)
- Protection rating: IP40 (dust/contact protection)
Precision roller-actuated mechanical valve featuring tool-free stroke adjustment through its hexagonal cam mechanism. The zinc-plated steel roller provides 100,000+ cycle durability, with color-coded position indicators (green=actuated, black=neutral). Includes built-in silencer for noise reduction below 70dB(A).
- Position sensing in linear actuator systems
- Conveyor belt tripwire emergency stops
- Cartesian robot end effector limit control
- Automatic door safety edge systems
- Packaging machine product presence detection
Installation guidelines:
Mount with roller axis perpendicular to actuator motion.
Lubricate sliding surfaces with ISO VG32 hydraulic oil monthly.
Maintain 0.5-1mm gap between roller and actuator surface at neutral position.
| Property | Property Value |
|---|---|
| sku | ZM3J06W |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
