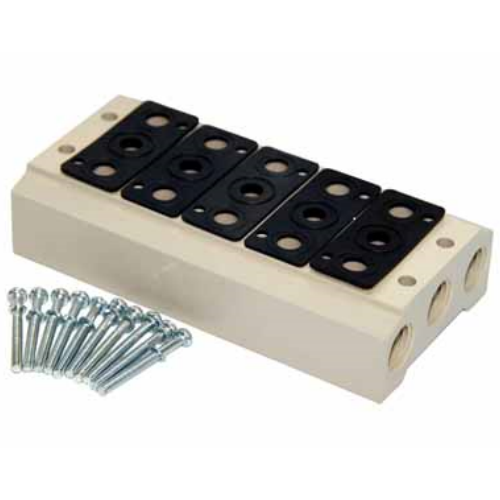

Airtac 200M Solenoid Valve Base 200M-2F
$11.08
Regular price
$18.58
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
200M-2F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Modular manifold assembly for same-series directional control valves, maximizing space efficiency and cost-effectiveness;
2、Integrated configuration with centralized air supply/exhaust ports and wiring channels, simplifying troubleshooting and maintenance;
3、Flexible modular design with expandable configuration, allowing seamless addition or rearrangement of connected directional control valves to meet evolving system requirements;
Category: Solenoid Valve Manifold Bases , Brand: AIRTAC , Series: 200M
Installation protocol:
Clean mounting surface with IPA (≥99%), apply thread sealant on end plate connections.
Tighten bolts in diagonal sequence using torque wrench. Maximum angular deviation: ±0.5°.
2、Integrated configuration with centralized air supply/exhaust ports and wiring channels, simplifying troubleshooting and maintenance;
3、Flexible modular design with expandable configuration, allowing seamless addition or rearrangement of connected directional control valves to meet evolving system requirements;
Category: Solenoid Valve Manifold Bases , Brand: AIRTAC , Series: 200M
AirTAC 200M-2F Manifold Base Specifications
- Model: 200M-2F
- Type: 2-station modular manifold base
- Material: Aluminum alloy (AL6063-T5)
- Surface treatment: Hard anodized (20-25μm thickness)
- Port size: PT1/8 (G1/8 optional)
- Mounting pitch: 20mm per station
- Max operating pressure: 1.0 MPa
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Compatible valves: 200 series solenoid valves
- Mounting torque: 1.2-1.5 N·m (M5 screws)
- Weight: 320g ±5g
- Dimensions: 64mm(L) × 20mm(W) × 34mm(H)
Precision-machined manifold base enabling modular valve stacking, featuring leak-proof design with O-ring seals. Optimized flow channels reduce pressure drop (ΔP ≤ 0.02 MPa at 5 L/min). Anodized surface resists chemical corrosion and mechanical wear.
Typical Applications:
- Centralized pneumatic control systems
- Multi-axis automation equipment
- Plastic injection molding machines
- Textile machinery air circuits
- Semiconductor manufacturing tools
Installation protocol:
Clean mounting surface with IPA (≥99%), apply thread sealant on end plate connections.
Tighten bolts in diagonal sequence using torque wrench. Maximum angular deviation: ±0.5°.
| Property | Property Value |
|---|---|
| sku | 200M-2F |
