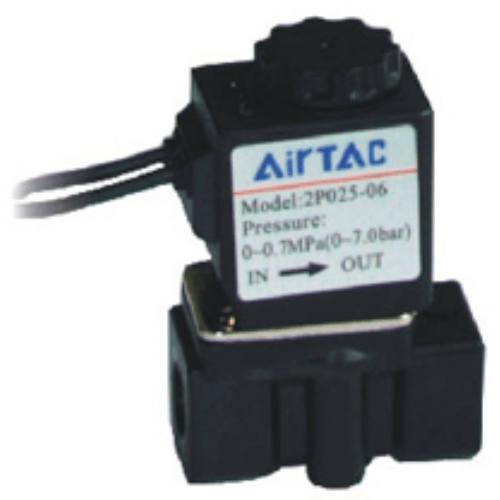

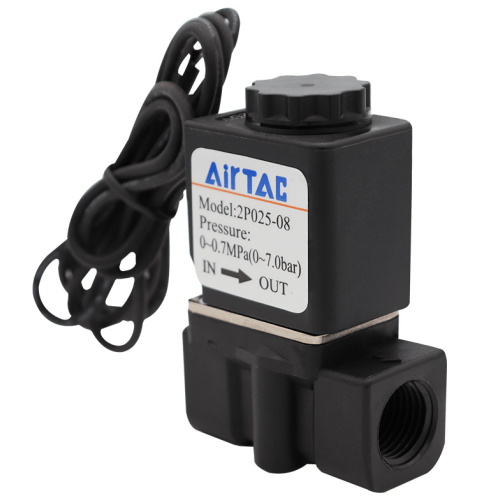

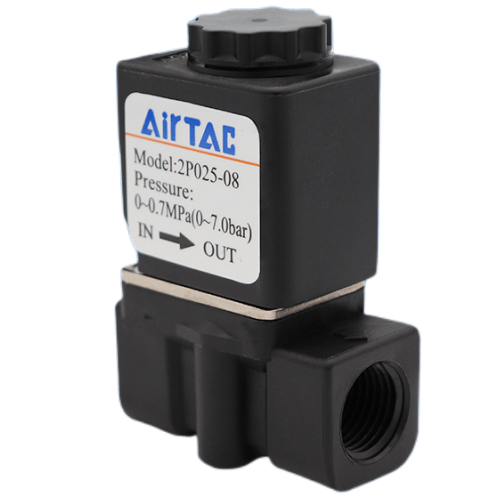

Airtac 2P Fluid Control Valve 2P02506CIG
2. Compact design featuring a minimized footprint and lightweight construction for tool-free installation;
3. Nylon 66 valve body paired with Class B insulation solenoid coil and VITON® seals, ensuring broad media compatibility;
4. IP65-rated coil protection and direct lead wire termination for enhanced durability in harsh environments.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2P
AirTAC 2P02506CIG 2-Way Fluid Control Valve Specifications
- Model: 2P02506CIG
- Type: 2-way normally closed (pilot-operated)
- Port size: PT3/8 (G3/8 thread)
- Fluid compatibility: Air, inert gases, light oils (ISO VG32 or thinner)
- Operating pressure: 0.05–1.0 MPa
- Max flow rate: 1,200 L/min (ANR)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Weight: 1.25 kg ±3%
- Dimensions: 138mm(L) × 56mm(W) × 74mm(H)
- Seal material: HNBR (Hydrogenated Nitrile) with PTFE coating
- Temperature range: -20℃ to 80℃ (non-freezing)
- Power consumption: 2.5W (DC), 3.2VA (AC)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Protection rating: IP67 (coil), IP40 (valve body)
- Port alignment: ISO 5599-1 standard
High-flow proportional control valve with anti-vibration design, featuring brass body with electroless nickel plating for corrosion resistance. The optimized spool structure reduces pressure loss by 18% compared to previous generation models. Requires 5μm filtered air with oil mist (ISO 8573-1 Class 3.4.2) for optimal performance.
- Pneumatic conveyor speed regulation systems
- Automated paint spray equipment flow control
- Plastic injection molding machine gas circuits
- Semiconductor manufacturing vacuum/pressure switching
- Hydraulic system pilot stage control
Installation guidelines:
Mount with vibration-damping brackets in high-shock environments.
Maintain minimum 20mm clearance from adjacent components for heat dissipation.
Use copper-free lubricants during maintenance (recommended viscosity: ISO VG15).
| Property | Property Value |
|---|---|
| sku | 2P02506CIG |
| Port Size | G1/8 |
| Flow Aperture | <2.5 mm> |
| Coil Voltage | AC 110V |
