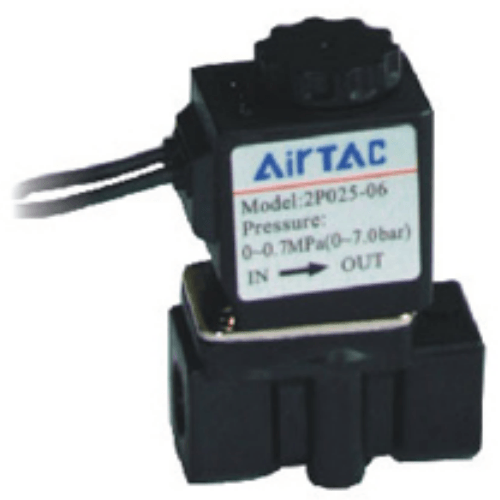

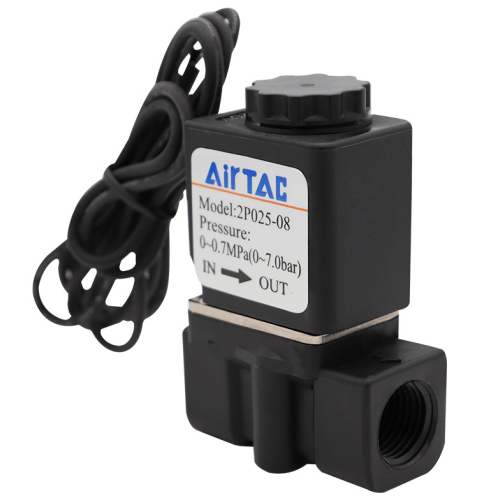

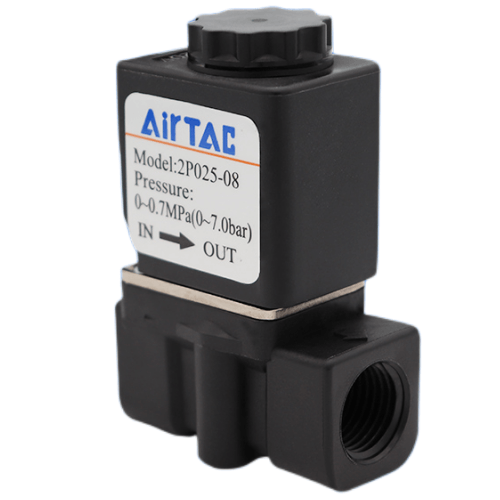

Airtac 2P Fluid Control Valve 2P02508BIG
2. Compact design featuring a minimized footprint and lightweight construction for tool-free installation;
3. Nylon 66 valve body paired with Class B insulation solenoid coil and VITON® seals, ensuring broad media compatibility;
4. IP65-rated coil protection and direct lead wire termination for enhanced durability in harsh environments.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2P
AirTAC 2P02508BIG 2-Position Fluid Control Valve Specifications
- Model: 2P02508BIG
- Type: 5-port 2-position (5/2-way) pilot-operated solenoid valve
- Port size: PT1/4 (G1/4 optional)
- Thread standard: BSPP (parallel thread)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Maximum flow rate: 850 L/min (ANR)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.8W (DC), 3.5VA (AC)
- Response time: ≤15ms (open), ≤10ms (close)
- Seal material: NBR (Nitrile) with glass fiber reinforced PBT body
- Temperature range: -5℃ to 80℃ (fluid temperature)
- Ambient temperature: -20℃ to 60℃
- Protection rating: IP67 (coil), IP40 (valve body)
- Weight: 420g ±5% (excluding accessories)
- Dimensions: 58mm(L) × 42mm(W) × 78mm(H)
High-flow directional control valve with dual-pressure operation capability, featuring a rugged aluminum alloy housing and corrosion-resistant plating. The optimized spool design ensures ≤0.1MPa minimum operating pressure difference. Includes manual override and position indicator. Compatible with ISO 15407-1 standards.
- Pneumatic cylinder sequencing in packaging machinery
- Automated assembly line clamping systems
- Plastic injection molding machine actuators
- Material handling equipment (conveyors, lifters)
- Automotive test bench pneumatic circuits
- Food processing pneumatic controls (dry air systems)
Installation guidelines:1. Use 40μm filtration for compressed air
2. Maintain ≥10mm clearance around valve for heat dissipation
3. Lubricate with ISO VG32 turbine oil if used in high-cycle applications (>5 operations/sec)
4. For vertical mounting, position electrical connector upward
| Property | Property Value |
|---|---|
| sku | 2P02508BIG |
| Port Size | G1/4" Thread |
| Flow Aperture | <2.5 mm> |
| Coil Voltage | DC24V |
