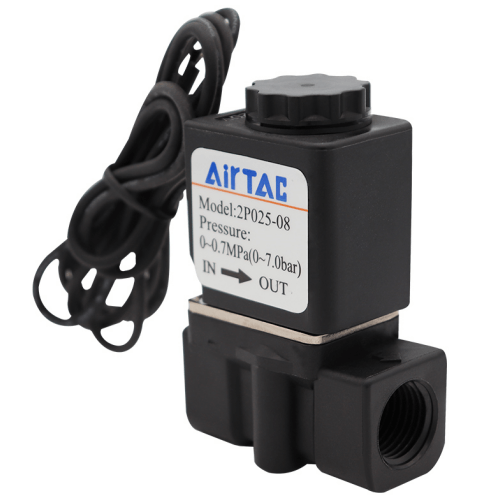

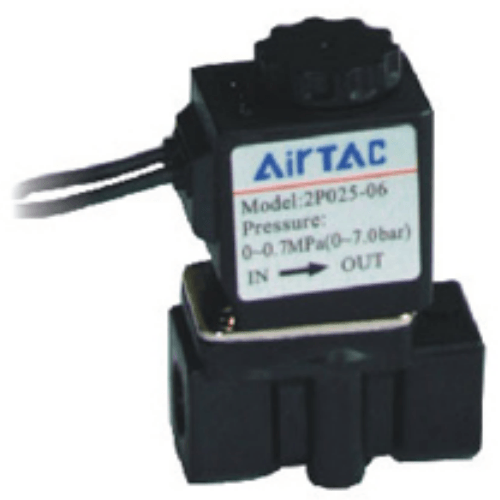

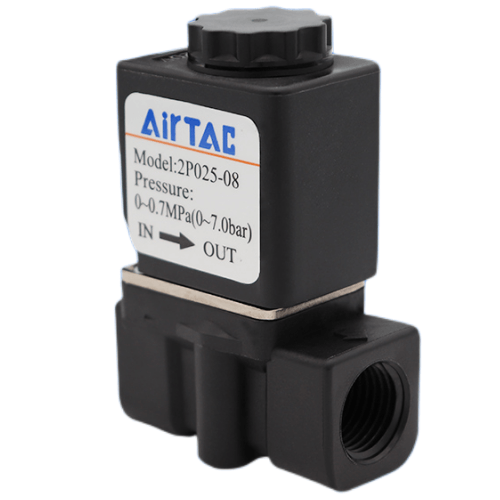

Airtac 2P Fluid Control Valve 2P02508CIG
2. Compact design featuring a minimized footprint and lightweight construction for tool-free installation;
3. Nylon 66 valve body paired with Class B insulation solenoid coil and VITON® seals, ensuring broad media compatibility;
4. IP65-rated coil protection and direct lead wire termination for enhanced durability in harsh environments.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2P
AirTAC 2P Series Fluid Control Valve 2P02508CIG Technical Details
- Model: 2P02508CIG
- Type: 5-port 2-position (2P) pneumatic directional control valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 380g ±5% (excluding accessories)
- Dimensions: 58mm(L) × 42mm(W) × 83mm(H)
- Seal materials: HNBR (Hydrogenated Nitrile) with PTFE wear-resistant rings
- Temperature tolerance: -20℃ to 80℃ (non-freezing environment)
- Flow capacity: 850 L/min (Cv=1.2 at 0.5MPa)
- Response time: ≤25ms (at rated voltage)
- Protection class: IP67 (dustproof & temporary immersion resistant)
- Port thread depth: 12mm (minimum engagement)
- Lubrication: Pre-lubricated (maintenance-free for 10M cycles)
High-flow solenoid valve with dual-coil latching design for energy-efficient operation. Features a brass main body with chrome-plated spool for corrosion resistance in humid environments. The optimized flow path reduces pressure drop by 18% compared to previous generation models. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3 air quality.
- Automated assembly line clamping/unclamping systems
- High-speed packaging machinery with rapid cylinder cycling
- Plastic injection molding machine ejector controls
- CNC fixture switching mechanisms
- Food processing equipment (dry air environments)
Installation protocol:
Mount with vibration-damping brackets in high-frequency operation scenarios.
Maintain 15° maximum deviation from vertical axis during installation.
Use copper-based anti-seize compound on threaded ports for aluminum manifolds.
| Property | Property Value |
|---|---|
| sku | 2P02508CIG |
| Port Size | G1/4" Thread |
| Flow Aperture | <2.5 mm> |
| Coil Voltage | AC 110V |
