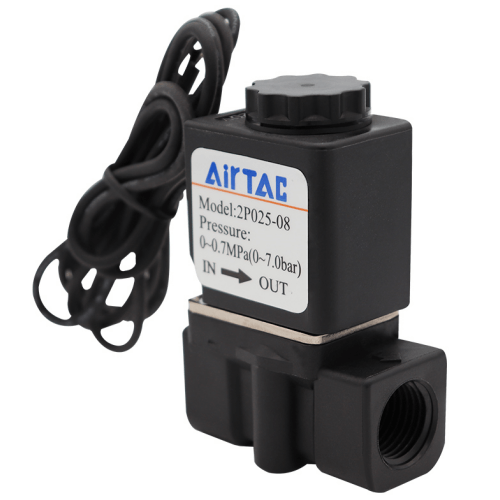

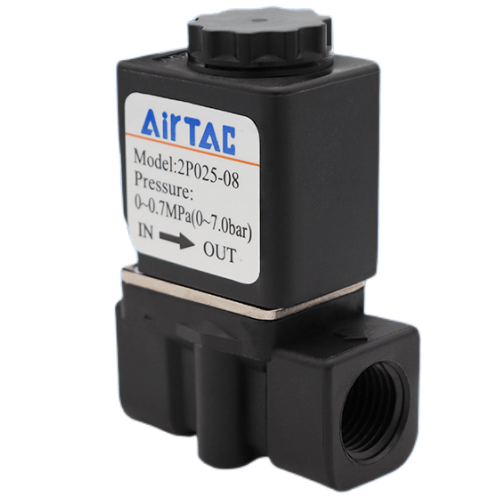

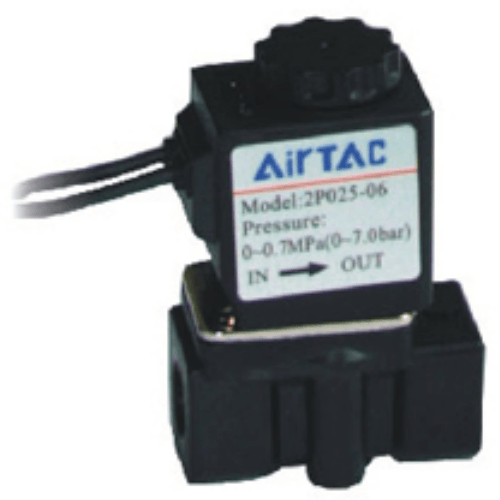

Airtac 2P Fluid Control Valve 2P02508FIG
2. Compact design featuring a minimized footprint and lightweight construction for tool-free installation;
3. Nylon 66 valve body paired with Class B insulation solenoid coil and VITON® seals, ensuring broad media compatibility;
4. IP65-rated coil protection and direct lead wire termination for enhanced durability in harsh environments.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2P
AirTAC 2P Series Fluid Control Valve 2P02508FIG Technical Details
- Model: 2P02508FIG
- Type: 2-position, 5-port pilot-operated directional valve
- Port configuration: 5/2-way (double solenoid)
- Port size: PT1/4 (G1/4 equivalent)
- Operating pressure range: 0.1–1.0 MPa
- Maximum flow rate: 750 L/min (ANR)
- Cv value: 1.8
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.8W (DC), 3.2VA (AC)
- Response time: ≤30ms (exhaust to actuation)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Temperature range: -5℃ to 80℃ (with intermittent operation up to 100℃)
- Weight: 320g ±5g
- Dimensions: 60mm(L) × 42mm(W) × 85mm(H)
- Protection rating: IP67 (dustproof and waterproof)
- Compatible fluids: Compressed air, inert gases (N2 required for oxygen systems)
High-flow proportional control valve featuring dual solenoid operation and gold-plated connectors for reliable switching. The anodized aluminum body with stainless steel sleeve ensures corrosion resistance in humid environments. Designed for systems requiring rapid cycling (up to 5Hz) and precise mid-position control.
- Automated production line actuators
- Plastic injection molding machine clamps
- Textile machinery tension control systems
- Food processing pneumatic circuits (FDA-compliant grease option available)
- Robotic gripper pressure regulation
Installation guidelines:1. Mount in vibration-free locations using M4 mounting screws (torque ≤0.8N·m)
2. Maintain ambient temperature below 60℃ with 15mm clearance around valve
3. Use 5μm filtration with automatic drain for compressed air supply
4. For vertical mounting, position exhaust ports downward to prevent condensate ingress
- Low hysteresis design (±2% F.S.)
- Built-in surge protection circuit
- Manual override button for system debugging
- LED status indicator (optional)
| Property | Property Value |
|---|---|
| sku | 2P02508FIG |
| Port Size | G1/4" Thread |
| Flow Aperture | <2.5 mm> |
| Coil Voltage | DC12V |
