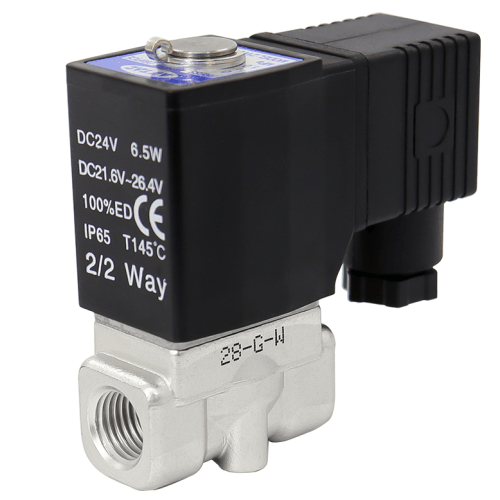

Airtac 2SH High Pressure Solenoid Valve 2SH05010AI
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH05010AI High-Pressure Solenoid Valve Specifications
- Model: 2SH05010AI
- Type: 2-position, 5-port direct-acting solenoid valve
- Port size: G1/8 (ISO228 standard)
- Operating pressure range: 0.1–1.2 MPa (15–174 PSI)
- Maximum pressure rating: 1.5 MPa (217 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 680g ±2% (including coil)
- Dimensions: 64mm(L) × 54mm(W) × 82mm(H)
- Seal material: Fluorocarbon rubber (FKM) for high-temperature resistance
- Temperature range: -10℃ to 150℃ (fluid temperature)
- Ambient temperature: -5℃ to 60℃
- Power consumption: 2.8W (DC), 4.5VA (AC)
- Protection rating: IP67 (dustproof and waterproof)
- Flow characteristics: CV value 0.18 (Kv 0.16)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Port thread depth: 12mm (minimum engagement)
- Compatible media: Compressed air, inert gases, light hydraulic oils (ISO VG32 or lower)
High-performance industrial solenoid valve engineered for demanding hydraulic/pneumatic systems requiring precise pressure control. Features a reinforced brass body with nickel plating for corrosion resistance and integrated surge suppression circuitry. The direct-acting design ensures reliable operation even under low-pressure conditions (down to 0.1 MPa). Includes manual override function for system debugging.
- High-pressure pneumatic presses and stamping machines
- Plastic injection molding machine hydraulic circuits
- CNC machine tool clamping systems
- Industrial boiler combustion control systems
- Test bench pressure regulation devices
- Food processing automation lines (oil-resistant version available)
Installation guidelines:
Mount in vibration-free locations using M5 mounting screws (not included).
Maintain minimum 50mm clearance from heat sources. Use PTFE tape on port threads
and torque to 12-15N·m. Always install downstream air filter (5μm or finer).
| Property | Property Value |
|---|---|
| sku | 2SH05010AI |
| Port Size | PT3/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
