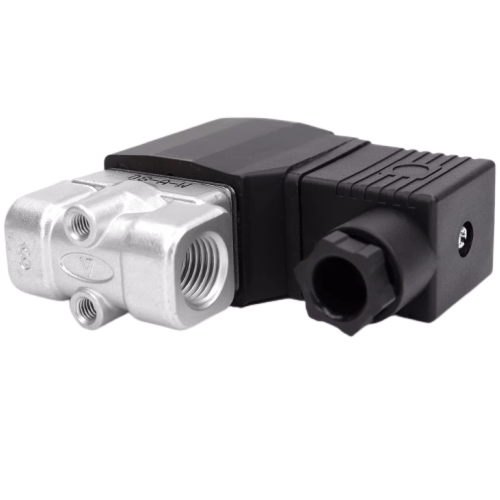

Airtac 2SH High Pressure Solenoid Valve 2SH05010BI
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH Series High-Pressure Solenoid Valve 2SH05010BI Technical Details
- Model: 2SH05010BI
- Type: 2-position 5-way direct-acting (monostable)
- Port size: G1/8 (ISO228/1 standard)
- Operating pressure range: 0.2–25 MPa (29–3625 PSI)
- Max pressure tolerance: 35 MPa burst pressure
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (at 20℃ nominal pressure)
- Flow capacity: 1800 NL/min (ANR, at 0.5 MPa)
- Seal materials: HNBR main seals + FKM secondary seals
- Ambient temperature: -10℃ to 60℃ (non-freezing)
- Fluid temperature: -10℃ to 80℃
- Protection rating: IP67 (dustproof/water immersion resistant)
- Electrical connection: DIN43650 Form A connector
- Weight: 650g ±2% (including coil)
- Dimensions: 108mm(L) × 44mm(W) × 76mm(H) (body only)
Engineered for extreme pressure environments, the 2SH05010BI features a reinforced stainless steel plunger system and triple-layer epoxy-coated body. Its unique pressure-balancing design ensures stable switching under 25MPa continuous operation. The valve incorporates anti-vibration mounting points and comes with industrial-grade EMI protection (30V/m @10-1000MHz). Requires 10μm filtration and automatic drain functionality recommended for moisture-heavy applications.
- Hydraulic press emergency stop systems
- Offshore oil & gas blowout preventer controls
- High-pressure waterjet cutting equipment
- CNC machine tool clamping mechanisms
- LNG cryogenic pump pneumatic override
- Test bench pressure cycling systems
Installation protocol:
Always install with vibration-damping mounts in high-shock environments.
For vertical mounting, position coil upward. Perform 50-cycle dry run
before pressurized operation. Maintenance interval: 5 million cycles
or 12 months (whichever comes first).
| Property | Property Value |
|---|---|
| sku | 2SH05010BI |
| Port Size | PT3/8 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
