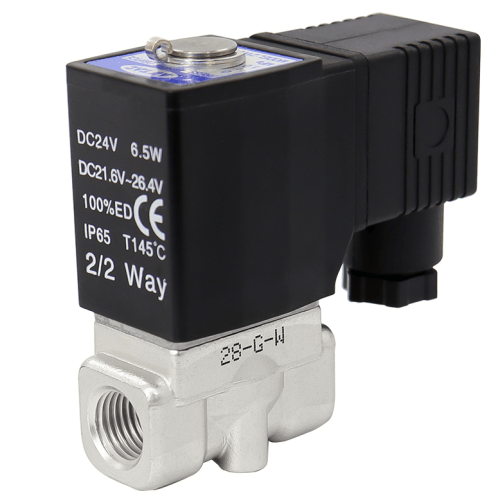

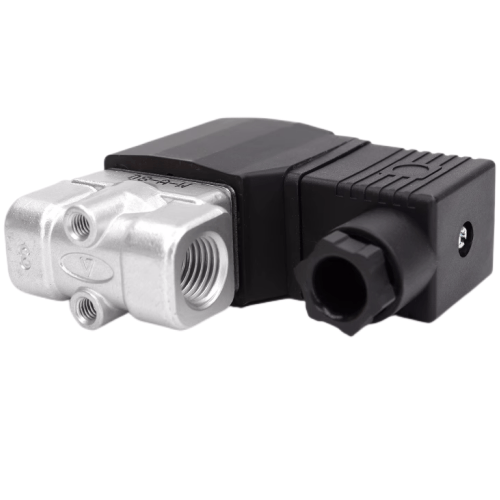

Airtac 2SH High Pressure Solenoid Valve 2SH05015AI
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH05015AI High-Pressure Solenoid Valve Technical Profile
- Full model designation: 2SH05015AI (Base model 2SH-5-01)
- Valve type: 2-position 3-way normally closed (pilot-operated)
- Port configuration: G1/8" BSPP female threads (ISO 228-1 compliant)
- Pressure range: 0.5-21 MPa (7-3,045 PSI) with surge protection
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: Cv=0.15 / Kv=0.13 (at 7 bar)
- Body material: CNC-machined stainless steel SS304
- Seal compounds: FKM (fluorocarbon) primary seals, HNBR dynamic seals
- Ambient temperature: -20℃ to +150℃ (non-condensing)
- Response time: ≤15ms (at rated voltage)
- Electrical protection: Class F insulation, transient suppression diode
- Weight: 520g ±2% (with mounting bracket)
- Dimensions: 120mm(L) × 65mm(W) × 55mm(H) (excludes connector protrusions)
- Protection rating: IP67 (submersible up to 1m for 30min)
- Certifications: RoHS, REACH, CE, ISO 9001:2015
Engineered for extreme pressure environments, the 2SH05015AI features multi-stage pressure regulation and anti-water-hammer design. Its oil-resistant seals and hardened stainless steel plunger ensure 500,000+ cycle durability. Requires 10μm filtration and <1% oil mist lubrication for optimal performance.
- Hydraulic pressurization systems in die-casting machines
- High-pressure coolant control for CNC machining centers
- PET blow molding machine air sequence control
- Subsea equipment pressure balancing systems
- Automotive brake fluid testing rigs
Installation protocol:
Mount with vibration-damping gaskets, maintain ≥30cm distance from high-frequency inverters.
Perform 5-10 pressure cycling tests before full operation. Compatible with ISO VG32 hydraulic fluids.
| Property | Property Value |
|---|---|
| sku | 2SH05015AI |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
