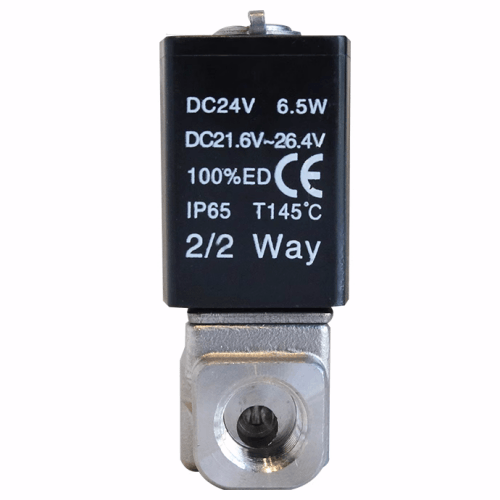

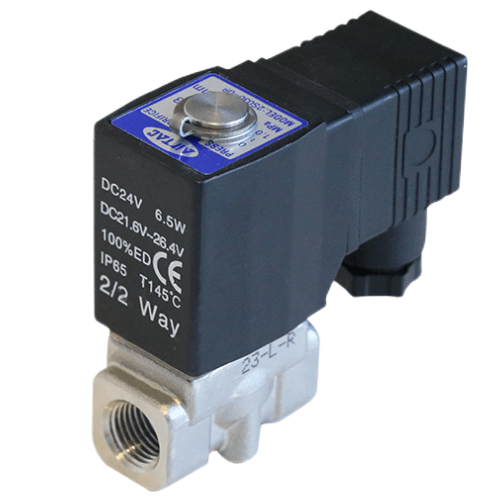

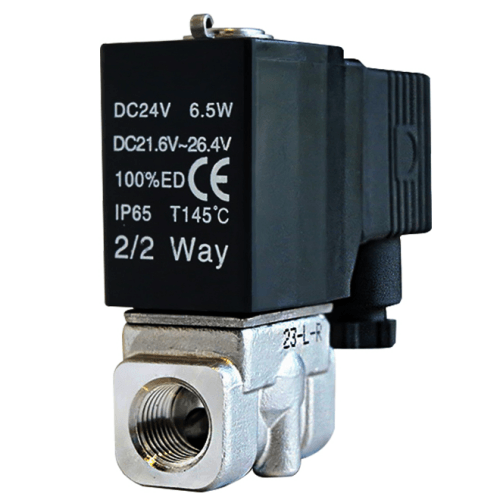

Airtac 2SL Fluid Control Valve 2SL05010CI
2、Wide pressure range compatibility, offering Ultra-high pressure (X), High pressure (H), Standard, Large flow (L), and Extra-large flow (T) configurations;
3、Compact design with minimized footprint, lightweight construction, and tool-free installation;
4、SUS304 stainless steel valve body, B-class heat-resistant solenoid coil, and FPM (Fluoroelastomer) standard seals compatible with multiple media. Custom seal materials available upon request - consult our technical department;
5、IP65-rated coil protection with wiring options: Direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SL
AirTAC 2SL05010CI Fluid Control Valve Specifications
- Model: 2SL05010CI
- Type: 2-position 5-way solenoid valve (double coil)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–1.0 MPa
- Voltage options: DC12V, DC24V, AC110V, AC220V (customizable)
- Flow capacity: 750 L/min (ANR)
- Weight: 0.85 kg ±5%
- Dimensions: 135mm(L) × 48mm(W) × 62mm(H)
- Valve body material: Die-cast aluminum alloy (hard anodized)
- Seal material: Heat-resistant FKM fluorocarbon rubber
- Temperature range: -10℃ to 80℃ (150℃ peak for short-term)
- Response time: ≤30ms (exhaust to actuation)
- Protection rating: IP67 (dustproof & waterproof)
- Port thread depth: 12mm (with O-ring groove)
High-flow directional control valve with dual-coil latching design for stable position retention without continuous power. Features multi-stage sealing system and surge protection circuitry. Compatible with ISO 15407-1 standards, optimized for rapid cycling applications. Requires 25μm filtration minimum.
- Automated assembly line cylinder sequencing
- Plastic injection molding machine actuators
- Beverage filling station pneumatic circuits
- Textile machinery tension control systems
- Electric vehicle battery cooling systems
Installation note:
Use anti-vibration mounting brackets in high-cycle applications (>5Hz).
Maintain 1°-2° downward tilt for optimal condensate drainage when horizontal.
| Property | Property Value |
|---|---|
| sku | 2SL05010CI |
| Port Size | PT3/8 |
| Flow Aperture | 7mm |
| Coil Voltage | AC 110V |
