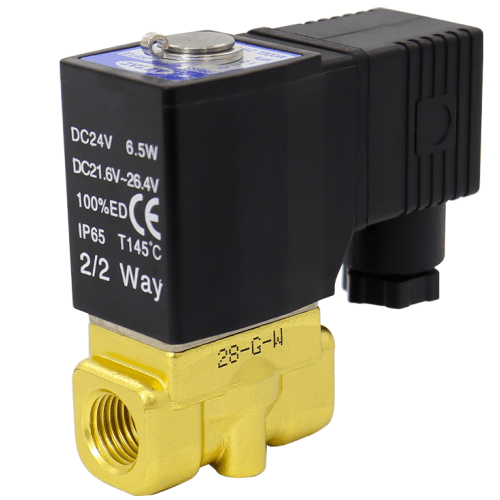

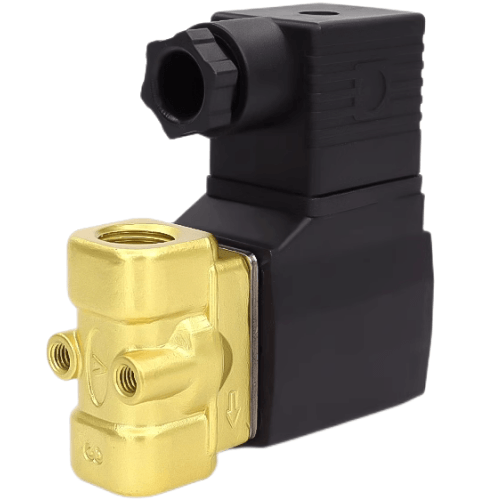

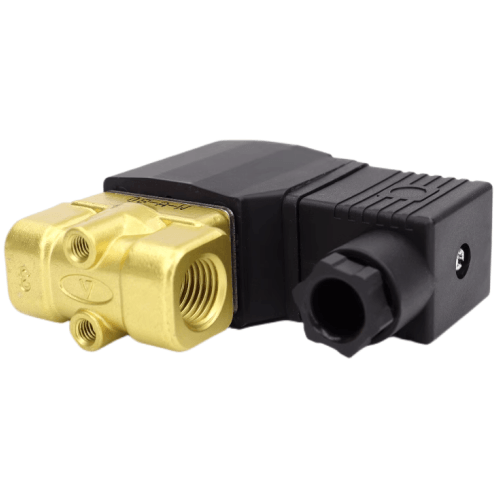

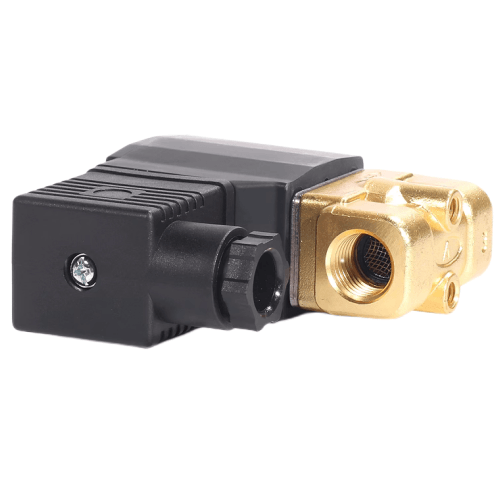

Airtac 2WX Fluid Solenoid Valve 2WX03006BI
2. Wide pressure range adaptability with selectable variants: Ultra-high pressure (X), High pressure (H), Standard, High flow (L), and Extra-high flow (T);
3. Compact design with minimal footprint, lightweight construction, and simplified installation/maintenance;
4. Brass valve body with B-class thermal-rated coils. Standard FPMF (Fluorine Rubber) seals ensure multi-media compatibility. Custom seal materials available upon request – consult our technical department;
5. IP65-rated coil protection. Electrical connection options: Direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: Airtac | Series: 2WX
AirTAC 2WX03006BI Fluid Solenoid Valve Technical Details
- Model: 2WX03006BI
- Type: 5/2-way direct-acting with bi-stable latching
- Port configuration: PT1/4 (G1/8 optional)
- Operating pressure range: 0.1–0.8 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Flow capacity: Cv 0.45
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material: HNBR (Hydrogenated Nitrile) for enhanced oil resistance
- Ambient temperature: -5℃ to 80℃ (non-freezing)
- Fluid temperature: 0℃ to 60℃
- Protection class: IP67 (dustproof and temporary immersion resistant)
- Electrical connection: DIN43650 Form A with LED indicator
- Weight: 320g ±5g
- Dimensions: 75mm(L) × 40mm(W) × 85mm(H)
High-flow bistable valve engineered for energy-efficient pneumatic systems requiring position memory. Features zero power consumption in steady state and shock-resistant coil design. The dual-pressure control capability enables precise cylinder positioning in automated processes. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Automated production line clamping/unclamping mechanisms
- Plastic injection molding machine ejectors
- Textile machinery thread tension control
- Battery assembly pressurization systems
- Packaging equipment with energy-saving requirements
Maintenance protocol:
Perform monthly manual override tests during standby periods.
Lubricate spool every 500,000 cycles using ISO VG32 turbine oil.
Critical note:
Not compatible with phosphate ester-based fluids.
Maintain minimum 85% duty cycle to prevent coil overheating.
| Property | Property Value |
|---|---|
| sku | 2WX03006BI |
| Port Size | PT1/8 |
| Flow Aperture | 1.5mm |
| Coil Voltage | DC24V |
