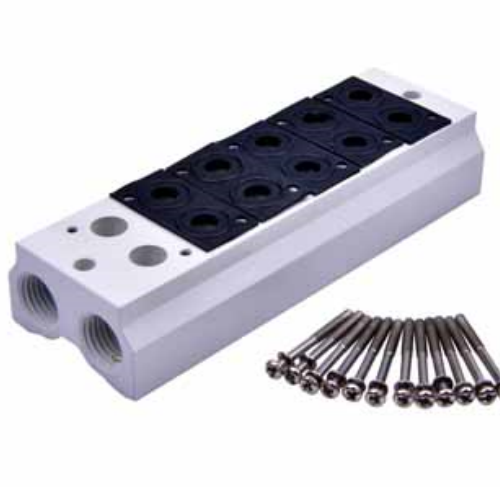

Airtac 300M Solenoid Valve Manifold 300M-12F
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
AirTAC 300M-12F Manifold Base Specifications
- Model: 300M-12F
- Type: Modular pneumatic manifold base
- Material: Aerospace-grade aluminum alloy (anodized finish)
- Port configuration: 12 stations (1-inlet/1-exhaust per station)
- Thread standard: G1/8 (BSPP) with ISO 228-1 compliance
- Max operating pressure: 1.0 MPa
- Temperature resistance: -20℃ to 80℃
- Surface hardness: HV 120-150
- Weight: 720g ±5%
- Dimensions: 202mm(L) × 25mm(W) × 42mm(H)
- Seal compatibility: NBR/FKM/EPDM seals
- Vibration resistance: 10-55Hz @ 1.5mm amplitude
- Mounting torque: 1.2-1.5N·m (solenoid valve attachment)
Precision-engineered modular baseplate enabling multi-valve manifold configurations. Features precision-milled flow channels with optimized pressure drop characteristics (ΔP < 0.02MPa @ 0.5MPa). Includes integrated silencer pockets and anti-vibration mounting slots. Compatible with 100/200/300 series AirTAC valves.
- Centralized control systems for plastic injection molding machines
- Automated assembly line pneumatic clusters
- Textile machinery multi-actuator control
- Semiconductor wafer handling equipment
- Beverage filling plant manifold stations
Installation note:
Use torque-limiting driver for valve mounting. Apply thread sealant
(PTFE tape excluded) on port adapters. Maintain 0.5mm clearance
between adjacent manifolds for thermal expansion.
| Property | Property Value |
|---|---|
| sku | 300M-12F |
