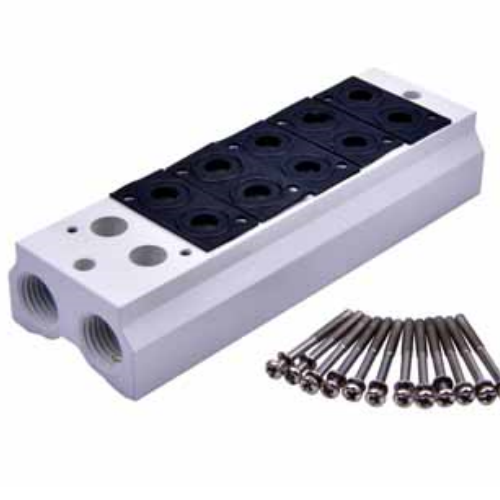

Airtac 300M Solenoid Valve Manifold 300M-15F
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
AirTAC 300M-15F Manifold Base Technical Details
- Model: 300M-15F
- Series: 300M Modular Manifold System
- Port configuration: 1/4" NPT (G1/8 optional)
- Material: Aluminum alloy (anodized surface treatment)
- Compatible valves: 2/3/5-port valves in 300M series
- Max operating pressure: 1.0 MPa
- Weight: 320g ±5g
- Dimensions: 76mm(L) × 36mm(W) × 50mm(H)
- Mounting hole spacing: 33mm center-to-center
- Seal type: Integrated NBR gasket with dust barrier
- Temperature resistance: -10℃ to 80℃
- Surface hardness: HV 120-150
- Port alignment tolerance: ±0.2mm
- Protection rating: IP54 (standard mounting)
Modular manifold base designed for multi-valve consolidation in pneumatic systems. Features precision-machined flow channels with optimized pressure drop characteristics. The staggered port design prevents tool interference during installation. Compatible with ISO 15407-1 standard subplates.
- Multi-station pneumatic control panels
- Automated assembly line valve clusters
- CNC machine tool pneumatic circuits
- Food processing equipment manifolds
- Semiconductor manufacturing gas distribution
Installation protocol:
Apply 3-5Nm torque during mounting. Use M5×16mm screws (max protrusion 2mm below base).
Perform air tightness test at 0.6MPa for 3 minutes post-installation.
| Property | Property Value |
|---|---|
| sku | 300M-15F |
