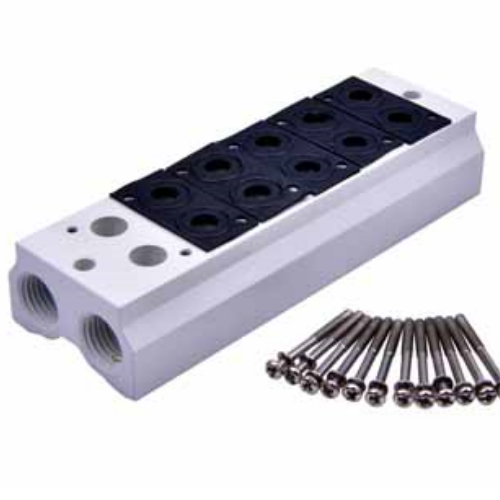

Airtac 300M Solenoid Valve Manifold 300M-16F
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
AirTAC 300M-16F Valve Manifold Base Specifications
- Model: 300M-16F
- Type: Modular solenoid valve mounting base
- Port configuration: 16 stations (16F)
- Port size: G1/8 (BSPP) with 1/4" subplate compatibility
- Material: Aluminum alloy ADC12 with anodized surface
- Max operating pressure: 1.0 MPa (10 bar)
- Temperature resistance: -5℃ to 80℃
- Surface roughness: Ra ≤ 3.2μm
- Installation hole spacing: 21mm pitch (ISO 4401 standard)
- Mounting thread: M5×0.8 (depth 6mm)
- Seal type: Integrated NBR gasket (Shore A 70±5)
- Weight: 215g ±5g
- Dimensions: 44mm(W) × 26mm(H) × 143mm(L)
- Port alignment tolerance: ±0.1mm
- Vibration resistance: 10-55Hz, 1.5mm amplitude
Precision-machined modular baseplate enabling multi-valve manifold configurations, featuring leak-proof design with staggered flow channels. The cross-drilled internal passages (Φ2.5mm) minimize pressure drop while maintaining compact dimensions. Compatible with 300 series valves and ISO 15407-1 compliant subplates.
- Centralized pneumatic control systems
- Automated assembly line valve clusters
- Textile machinery air distribution
- Plastic injection molding machine manifolds
- Semiconductor manufacturing equipment
Installation note:
Apply 0.5-0.8Nm torque during valve mounting. Use Loctite 243 threadlocker
for securing base to machinery. Clean air supply (ISO 8573-1:2010 Class 2.4.2)
required for optimal performance.
