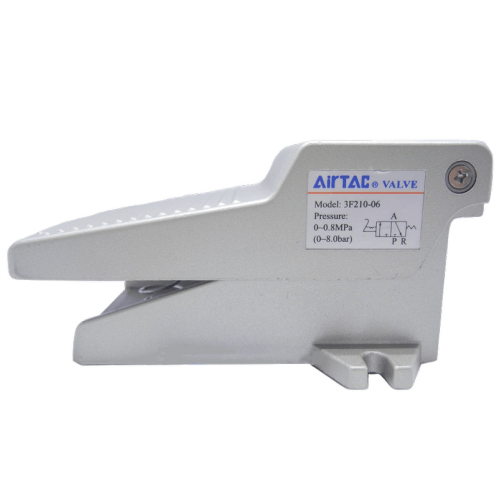

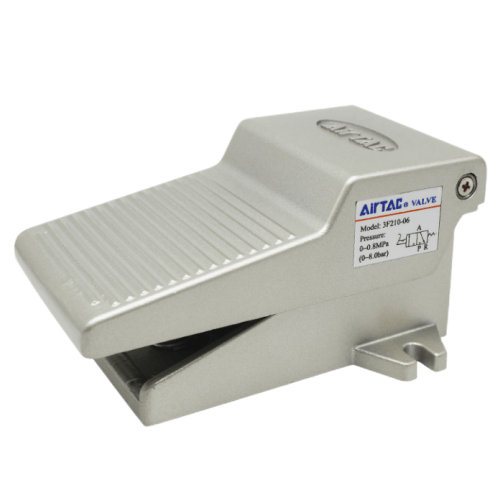

Airtac 3F Foot Pedal Valve 3F210-06
2、3F series features aluminum pedal construction, while 3FM series adopts plastic pedal. Both employ horizontal direct-acting structure with compact design;
3、Lockable version available for applications requiring prolonged direction holding;
4、Positive locking mechanism ensures stable engagement with smooth release. Structural constraints limit suitability for frequent high-impact forces due to compact dimensions.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3F
AirTAC 3F210-06 Foot Pedal Valve Technical Details
- Model: 3F210-06
- Type: Mechanical foot-operated 3/2-way valve (normally closed)
- Port size: PT1/4" (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Valve body material: Aluminum alloy with hard anodizing
- Seal material: Oil-resistant NBR
- Temperature range: -20℃ to 80℃
- Mounting options: Base plate or side mounting
- Actuation force: ~30N pedal pressure
- Mechanical life: ≥2 million cycles
- Response time: ≤50ms
- Protection rating: IP54 (dust and water splash resistant)
- Weight: ~850g (including mounting hardware)
- Dimensions: 180mm(L) × 120mm(W) × 65mm(H)
Heavy-duty foot control valve with ergonomic pedal design, featuring anti-slip tread pattern and overload protection. The dual-spring mechanism ensures positive return action, while the chrome-plated steel shaft enhances corrosion resistance. Requires 5-7 bar filtered compressed air (40μm filtration recommended).
- Press machine emergency stop systems
- Assembly line fixture clamping control
- Automotive repair shop pneumatic tools
- Packaging machine manual override
- Foundry equipment activation
Operation tip:
Apply force to pedal center for smooth actuation. Lubricate pivot points
every 500,000 cycles using ISO VG32 hydraulic oil. Avoid lateral impacts
exceeding 50N to prevent shaft misalignment.
| Property | Property Value |
|---|---|
| sku | 3F210-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
