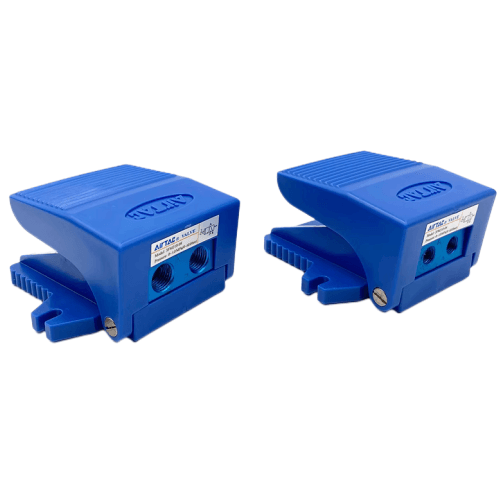

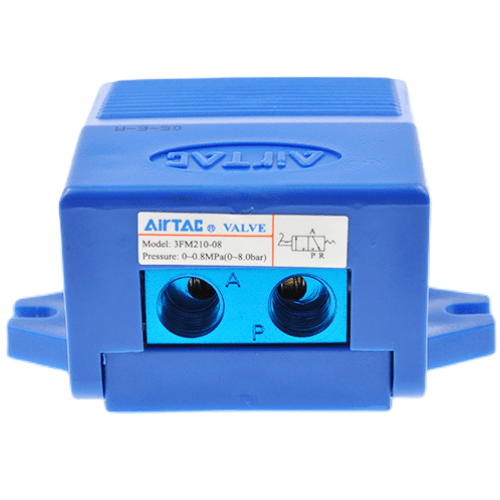

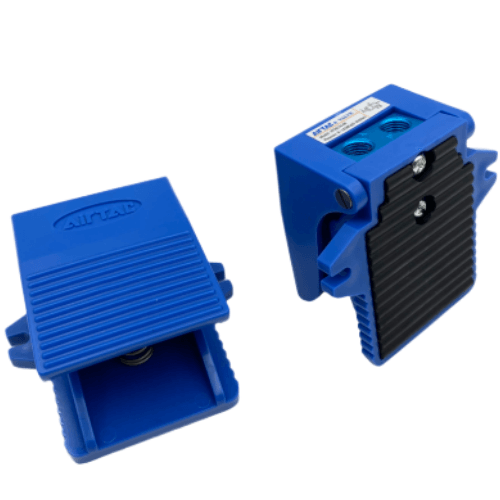

Airtac 3FM Foot Pedal Valve 3FM210-06
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. 3F Series features aluminum pedal while 3FM Series adopts polymeric pedal, both employing direct-acting horizontal structure with compact design.
3. Optional self-locking variant available for extended direction-holding duration requirements.
4. Patented locking mechanism ensures high operational stability and reliability, enabling light-duty release action. Note: Not recommended for frequent high-impact applications due to structural constraints.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3FM
AirTAC 3FM210-06 Foot Pedal Valve Technical Specifications
- Model: 3FM210-06
- Type: 2-position 5-way foot-operated pneumatic valve
- Port configuration: G1/4 (BSPP thread standard)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Maximum flow rate: 750 L/min (Cv=1.3)
- Actuation force: 25-35N pedal pressure
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile) with reinforced polyurethane wear pads
- Temperature range: -10℃ to 60℃ (14℉ to 140℉)
- Weight: 820g (1.81 lbs)
- Dimensions: 145mm(L) × 105mm(W) × 55mm(H)
- Mounting pattern: 4×M5 threaded holes (72mm × 40mm spacing)
- Return spring: Stainless steel with 500,000 cycle rating
- Pedal surface: Anti-slip diamond pattern (60×40mm)
- Protection rating: IP54 (dust protected & splash resistant)
Heavy-duty foot control valve featuring dual-stage pedal action with tactile feedback. The progressive engagement mechanism allows both momentary and latching operation modes. Features dual exhaust ports with integrated mufflers (optional silencer kit available). Designed for repetitive industrial use with 2 million cycle durability under rated conditions.
- Press machine emergency stop systems
- Assembly line fixture clamping control
- Medical device testing equipment activation
- Packaging machine material feeding
- Woodworking CNC hold-down systems
- Automotive brake line testing rigs
Installation guidelines:
Mount on flat surfaces using M5×12mm screws (not included).
Maintain 50mm clearance above pedal for full actuation.
Lubricate pivot points every 50,000 cycles with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 3FM210-06 |
| Position | 3-Port 2-Position |
| Port Size | PT1/8 |
