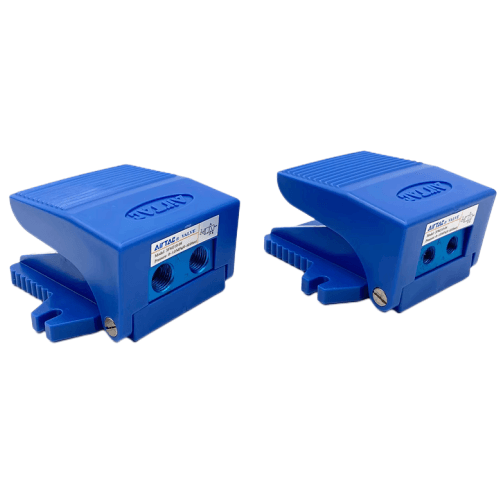

Airtac 3FM Foot Pedal Valve 3FM210-M5
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.

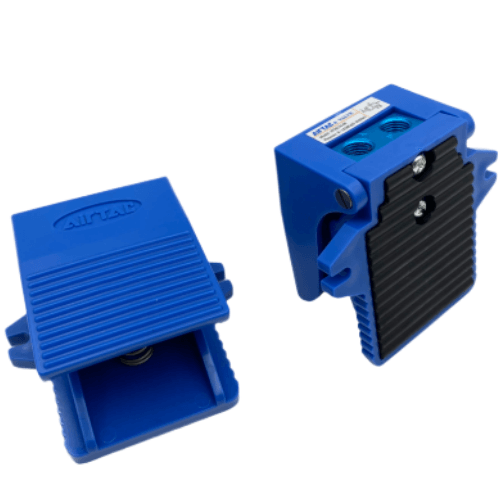

2. 3F Series features aluminum pedal while 3FM Series adopts polymeric pedal, both employing direct-acting horizontal structure with compact design.
3. Optional self-locking variant available for extended direction-holding duration requirements.
4. Patented locking mechanism ensures high operational stability and reliability, enabling light-duty release action. Note: Not recommended for frequent high-impact applications due to structural constraints.
Category: Foot Pedal Valves | Brand: AIRTAC | Series: 3FM
AirTAC 3FM210-M5 Foot Pedal Valve Technical Details
- Model: 3FM210-M5
- Type: 3/2-way normally closed (mechanical foot-operated)
- Port thread: M5×0.8 (ISO standard)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 350 NL/min (ANR)
- Actuation force: ≤50N pedal pressure
- Body material: Aluminum alloy (hard anodized)
- Seal material: Oil-resistant NBR
- Temperature range: -10℃ to 60℃ (14℉ to 140℉)
- Weight: 480g (1.06 lbs) with mounting hardware
- Dimensions: 98mm(L) × 72mm(W) × 42mm(H) (3.86"×2.83"×1.65")
- Mounting: Panel installation (Ø4.3mm mounting holes)
- Protection rating: IP54 (dust protected & water splashed)
- Cycle life: ≥500,000 operations
Ergonomic foot-operated valve with anti-slip pedal surface and progressive engagement mechanism. Features dual-stage spring return system for precise airflow control. The hardened steel shaft and wear-resistant bushings ensure durability in high-frequency operations. Compatible with ISO 15407-1 standard pneumatic systems.
- Medical/dental chair height adjustment systems
- Industrial sewing machine thread trimming control
- Food processing equipment activation
- Automotive repair shop lifting platforms
- Packaging line emergency stop systems
Installation tip:
Mount on non-flexible surfaces using M4 screws (not included).
Maintain minimum 25mm clearance under pedal for full stroke.
Lubricate pivot points every 50,000 cycles with ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | 3FM210-M5 |
| Position | 3-Port 2-Position |
| Port Size | M5 |
