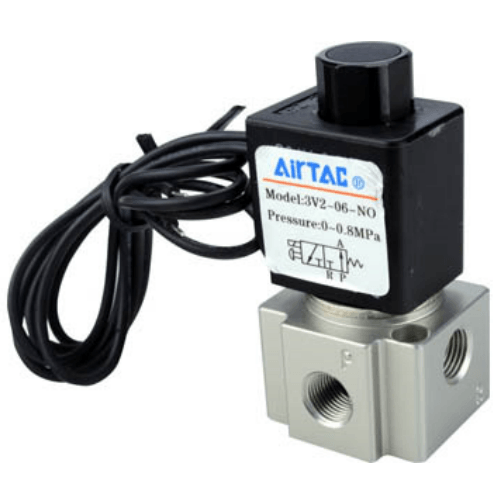

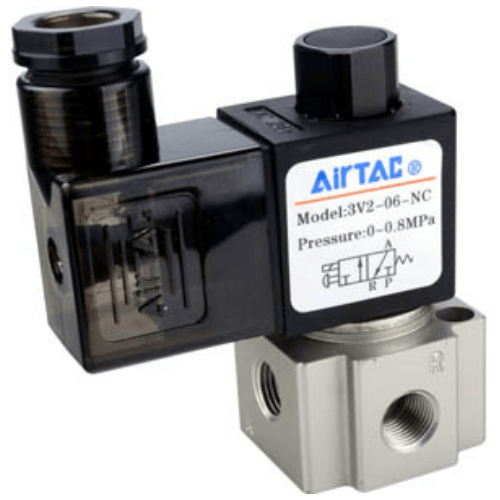

Airtac 3V2 Solenoid Valve 3V208NOA
The AirTAC Airtac 3V2 Solenoid Valve 3V208NOA is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. It either feeds its outlet or vents it to exhaust, which is what makes it the valve for single-acting cylinders, on/off air blow, clamping, vacuum switching and pilot duty.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally open
- Port size1/4 in
- Coil voltageAC220V
- Electrical entryDIN plug (DIN socket type)
- Flow (Cv)0.19
- Series3V2
About the Airtac 3V2 Solenoid Valve 3V208NOA
3V208NOA is the normally open member of the AirTAC 3V2 family in the 1/4in PT size. In its resting state air passes from supply to outlet; energising the direct-acting solenoid shuts the path and vents the outlet through the third port. The single spring-return poppet is coaxial, so it seats cleanly at either end of the 0-0.8 MPa range.
Flow per port is Cv 0.19, equivalent to 3.4 mm2, and the AC220V coil draws 7 VA. Because the valve is catalogue-rated for vacuum service from -102.2 kPa to 0.1 MPa, it can also hold or release negative-pressure lines - something the 3V1 and 3V2M bodies cannot do.
Airtac 3V2 Solenoid Valve 3V208NOA Technical Specifications
| Model | Airtac 3V2 Solenoid Valve 3V208NOA |
|---|---|
| Series | 3V2 |
| Valve type | 3/2-way (3-port, 2-position) |
| Function | Direct-acting, single solenoid, spring return |
| Initial state | Normally open |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | AC220V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | 7 VA |
| Operating pressure | 0-0.8 MPa (0-114 psi) |
| Vacuum service | Rated -102.2 kPa to 0.1 MPa |
| Flow coefficient | Cv 0.19 (3.4 mm2 effective area) |
| Temperature | -20 to 70 C |
| Construction | Coaxial shut-off (poppet), direct-acting, spring return |
| Protection | IP65 (DIN 40050) |
| Medium | Air, filtered by a 40 µm or finer element. Lubrication not required. |
Figures follow the official AirTAC 3V2 catalogue. Confirm coil voltage and thread (PT / NPT / G) against the product label before wiring.
Model Code: Airtac 3V2 Solenoid Valve 3V208NOA
| 3V2 | Body — sets the flow, the coil power and whether vacuum is rated. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NO | Normally open: air passes until the coil is energised. |
| AC220V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V2 Solenoid Valve 3V208NOA Is Used
E-stop air dump on a packaging conveyor
Wired de-energised-to-run: at rest the NO valve keeps hold-down pads or gate cylinders live; hitting the E-stop kills the coil and vents the circuit to exhaust.
Distributed tooling on a rotary indexing table
Air stays present at each station while the table turns; only the station under service is de-energised, so clamps release one at a time.
Continuous cooling blow at a saw station
The nozzle receives air between cuts without holding the coil; a control signal shuts the stream off once the saw parks.
Is the Airtac 3V2 Solenoid Valve 3V208NOA the Right Part?
Work down as well as up: 3V1 fits small, low-power duties (its DC24V coil takes 3.0 W versus 7 VA here), and 3V2M suits a compact manifold build where Cv 0.1 is enough. Upward, 3V3 is the real upgrade - Cv 0.62 on a 1/4in body and still vacuum-rated. Tick off five items before ordering: port and thread (1/8in or 1/4in; PT standard, G and NPT as catalogue options), initial state (here NO), supply voltage, electrical entry style (DIN plug or flying lead), and any vacuum element in the job. Need to stroke a double-acting cylinder? That calls for the AirTAC 4V 5-port series.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Stay within 0-0.8 MPa (0-114 psi) operating pressure.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V2 Solenoid Valve 3V208NOA FAQ
Per-port flow: 3.4 mm2 effective area, Cv 0.19 on the 1/4in 3V208 body; the 1/8in 3V206 is 3.2 mm2, Cv 0.18. Pressure 0-0.8 MPa, vacuum rating -102.2 kPa to 0.1 MPa, temperature -20 to 70 C. The AC220V coil consumes 7 VA (DC versions 7.0 W), and protection is IP65 (DIN 40050).
Choose NO when air should flow during power loss - safety dumps, fail-open vents, pilot circuits that must stay charged. Choose NC when the outlet must stay dead until a signal arrives. Both states exist across the 3V2 range, and this body keeps the -102.2 kPa to 0.1 MPa vacuum rating in either state.
