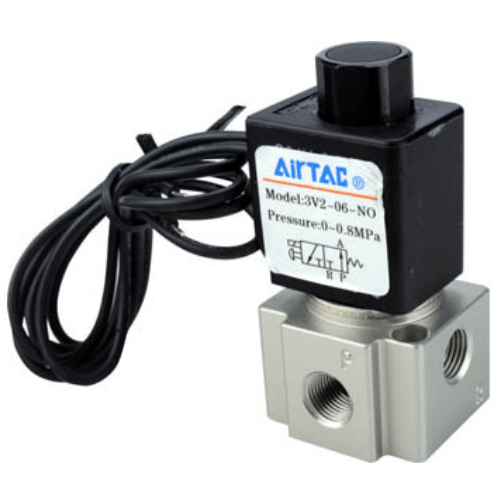

Airtac 3V2 Solenoid Valve 3V208NOE
The AirTAC Airtac 3V2 Solenoid Valve 3V208NOE is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. It either feeds its outlet or vents it to exhaust, which is what makes it the valve for single-acting cylinders, on/off air blow, clamping, vacuum switching and pilot duty.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally open
- Port size1/4 in
- Coil voltageAC24V
- Electrical entryDIN plug (DIN socket type)
- Flow (Cv)0.19
- Series3V2
About the Airtac 3V2 Solenoid Valve 3V208NOE
The AirTAC 3V208NOE is the normally open, 1/4in PT member of the 3V2 family. It has three ports and two states: unpowered, supply passes through to the outlet; energised, the valve shuts that path and vents the outlet to exhaust. That fail-open logic suits lines where a lost signal must stop feeding a single-acting cylinder, a clamp or a blow jet rather than trap it under pressure.
A spring return and coaxial poppet do the switching, so the valve is fully direct acting and needs no minimum pressure to operate. Each port offers Cv 0.19 (3.4 mm2 effective area). The AC24V coil takes 7 VA through a DIN plug, protection is IP65, and - unlike the 3V1 or 3V2M bodies - this valve is rated for vacuum down to -102.2 kPa.
Airtac 3V2 Solenoid Valve 3V208NOE Technical Specifications
| Model | Airtac 3V2 Solenoid Valve 3V208NOE |
|---|---|
| Series | 3V2 |
| Valve type | 3/2-way (3-port, 2-position) |
| Function | Direct-acting, single solenoid, spring return |
| Initial state | Normally open |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | AC24V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | 7 VA |
| Operating pressure | 0-0.8 MPa (0-114 psi) |
| Vacuum service | Rated -102.2 kPa to 0.1 MPa |
| Flow coefficient | Cv 0.19 (3.4 mm2 effective area) |
| Temperature | -20 to 70 C |
| Construction | Coaxial shut-off (poppet), direct-acting, spring return |
| Protection | IP65 (DIN 40050) |
| Medium | Air, filtered by a 40 µm or finer element. Lubrication not required. |
Figures follow the official AirTAC 3V2 catalogue. Confirm coil voltage and thread (PT / NPT / G) against the product label before wiring.
Model Code: Airtac 3V2 Solenoid Valve 3V208NOE
| 3V2 | Body — sets the flow, the coil power and whether vacuum is rated. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NO | Normally open: air passes until the coil is energised. |
| AC24V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V2 Solenoid Valve 3V208NOE Is Used
Carton-line blow-off
On a food packaging carton sealer, the normally open state keeps the dust-clearing jet running while the machine is powered down or e-stopped; energising the AC24V coil through the DIN plug cuts the jet instantly.
Microplate vacuum handling
A laboratory plate handler uses the 3V208NOE to switch suction on a microplate gripper; the -102.2 kPa vacuum rating lets one valve manage both the vacuum draw and the venting of the cup.
Pilot for a process diaphragm valve
Mounted in a water-treatment skid, the valve passes a pilot air signal to a larger diaphragm valve while unpowered and dumps the signal to exhaust when energised, giving a fail-open control scheme.
Is the Airtac 3V2 Solenoid Valve 3V208NOE the Right Part?
Five checks before you order: port 1/4in with PT as the standard thread (G and NPT are order options), normally open initial state, AC24V coil, DIN plug entry, and whether the circuit sees vacuum. If the duty is light and coil draw is the constraint, the 3V1 takes 3.0 W on DC24V against 7.0 W here; if you need many valves packed close, the base-mounted 3V2M wins on density but not on flow, since its Cv is only 0.1; and when the job genuinely needs more capacity, 3V3 at Cv 0.62 is the step up and is also vacuum rated. A double-acting cylinder requires a 5-port valve - specify the AirTAC 4V series.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Stay within 0-0.8 MPa (0-114 psi) operating pressure.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V2 Solenoid Valve 3V208NOE FAQ
The 1/4in body flows Cv 0.19 per port (3.4 mm2 effective area); the 1/8in 3V206 variant flows Cv 0.18 (3.2 mm2). Pressure range is 0-0.8 MPa, extended to -102.2 kPa for vacuum service. Temperature spans -20 to 70 C. Coils draw 7 VA on AC and 7.0 W on DC, protection class is IP65 (DIN 40050), and the air must be filtered to 40 um or finer.
Pick NO when the line should flow while the coil is off: a blow-off that must keep running through a control failure, a vent that must open on power loss, or a single-acting cylinder that should stay fed by default. NC does the reverse and blocks the outlet until energised. Both states are catalogue options on the same 3V2 body.
