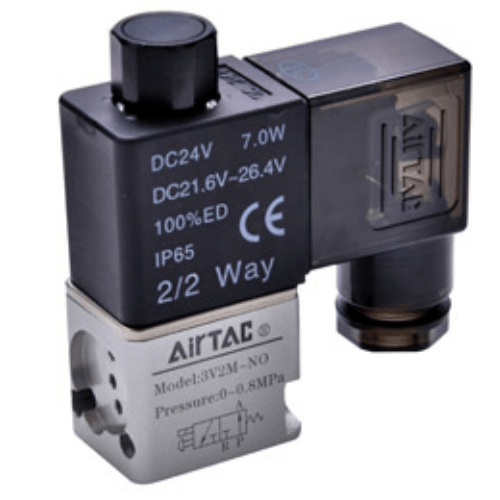

Airtac 3V2M Solenoid Valve 3V2MNCEI-12F
$500.60
Regular price
$508.10
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
3V2MNCEI-12F
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Direct-acting structure with responsive directional switching; Available in normally closed (NC) and normally open (NO) configurations;
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
Operational note:
For horizontal piping layouts, install downstream filter regulator within
500mm. Lubrication not required - incompatible with petroleum-based oils.
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
AirTAC 3V2MNCEI-12F Solenoid Valve Technical Details
- Model: 3V2MNCEI-12F
- Function: 3/2-way normally closed (direct-acting)
- Port thread: PT1/8 (G1/8 available on request)
- Pressure range: 0.05–1.0 MPa (optimized for low-pressure systems)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Power consumption: DC: 1.6W | AC: 2.2VA
- Response time: ≤15ms (actuation) / ≤20ms (release)
- Flow capacity: 120L/min (Cv=0.16 at 0.5MPa)
- Seal material: Heat-resistant NBR (-20℃ to 100℃)
- Body material: Reinforced PBT with UL94 V-0 rating
- Protection grade: IP67 (dust/water resistant)
- Weight: 220g ±5g (including coil)
- Dimensions: 60mm(L) × 40mm(W) × 70mm(H) (excluding fittings)
High-cycle valve featuring low power consumption and rapid switching, with upgraded coil protection against voltage spikes. The lead-wire version (suffix -12F) comes with 300mm PVC-sheathed cables with IP67 connectors. Requires 5μm filtered compressed air with max 5ppm oil content.
Industrial Applications:
- Textile machinery bobbin changers
- Beverage canning line diverters
- 3D printer pneumatic extruders
- Semiconductor wafer handling robots
- Electric vehicle battery cooling systems
Operational note:
For horizontal piping layouts, install downstream filter regulator within
500mm. Lubrication not required - incompatible with petroleum-based oils.
| Property | Property Value |
|---|---|
| sku | 3V2MNCEI-12F |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Standard Voltage | AC24V |
