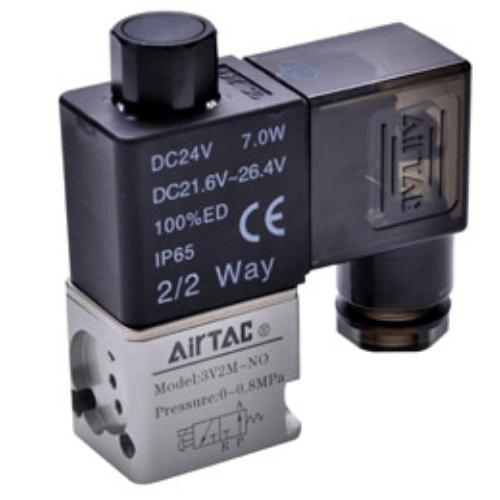

Airtac 3V2M Solenoid Valve 3V2MNCEI-3F
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
AirTAC 3V2MNCEI-3F Solenoid Valve Specifications
- Model: 3V2MNCEI-3F
- Type: 3/2-way normally closed (pilot-operated, high-frequency)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa (7-145 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Weight: 220g ±5g (with connector)
- Dimensions: 58mm(L) × 36mm(W) × 72mm(H) (excluding fittings)
- Seal material: HNBR rubber (high nitrile for oil resistance)
- Temperature range: -10℃ to 80℃ (non-freezing environment)
- Power consumption: ≤2.5W (AC), ≤3.5W (DC)
- Response time: ≤15ms (exhaust), ≤20ms (reset)
- Flow coefficient (Cv): 1.2
- Protection rating: IP67 (dust/water resistant)
- Cycle life: ≥10 million operations
High-performance compact solenoid valve featuring brass body construction with hard anodized aluminum core. Designed for rapid cycling applications requiring precise air control. Equipped with LED status indicator and surge protection circuitry. Requires 5μm filtered dry air with ISO 8573-1:2010 Class 3.4.2 purity standards.
- High-speed pick-and-place robotic arms
- Textile machinery pneumatic controls
- Semiconductor manufacturing equipment
- Automated food packaging lines
- Laser cutting machine air assist systems
Installation note:
For optimal performance, install with 12-15mm clearance around valve body.
Use vibration-damping mounts in high-shock environments. Lubricate with ISO VG32
turbine oil if operated below -5℃. Manual override available via push-button actuator.
| Property | Property Value |
|---|---|
| sku | 3V2MNCEI-3F |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Standard Voltage | AC24V |
