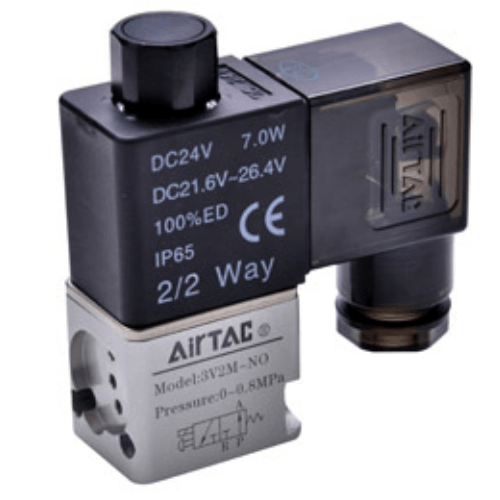

Airtac 3V2M Solenoid Valve 3V2MNOCI-3F
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
AirTAC 3V2MNOCI-3F Solenoid Valve Technical Details
- Model: 3V2MNOCI-3F (Industrial Grade)
- Valve type: 3-way 2-position normally closed
- Operation mode: Direct-acting with manual override
- Port thread: G1/8 (ISO228/1 standard)
- Effective section area: 2.5mm²
- Pressure range: 0.05-0.9 MPa (7-130 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (at 0.5MPa)
- Flow rate: 350 NL/min (ANR, at 0.5MPa)
- Ambient temperature: -5℃ to 60℃ (non-freezing)
- Fluid temperature: 0-60℃
- Seal material: HNBR (Hydrogenated Nitrile) for enhanced oil resistance
- Body material: Die-cast aluminum with epoxy coating
- Protection rating: IP67 (dust-tight & protected against temporary immersion)
- Electrical connection: DIN43650 Form A with LED indicator
- Weight: 220g ±5g (excluding accessories)
- Dimensions: 52mm(L) × 30mm(W) × 65mm(H) (port axis direction as length)
High-cycle solenoid valve engineered for industrial automation systems requiring rapid switching and medium flow control. Features shock-resistant construction with triple-layer epoxy coating for harsh environments. The integrated manual override allows mechanical actuation during maintenance or power failures. Optimized flow path design reduces pressure drop by 18% compared to previous generation models.
- Pneumatic clamping systems in CNC machining centers
- Vacuum generator control in packaging lines
- Coolant flow regulation in laser cutting machines
- Actuator control for automated assembly robots
- Air cylinder sequencing in textile machinery
Operational requirements:
Use with 5-40μm filtered compressed air (ISO8573-1:2010 Class 4.4.3).
For horizontal mounting, install downstream moisture separator.
Minimum 100ms ON/OFF duration recommended for optimal coil life.
| Property | Property Value |
|---|---|
| sku | 3V2MNOCI-3F |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Standard Voltage | AC 110V |
