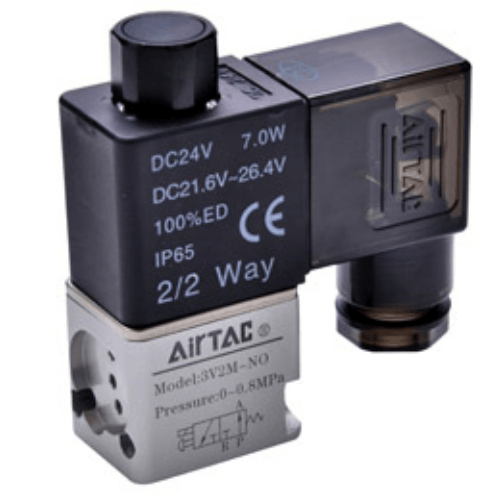

Airtac 3V2M Solenoid Valve 3V2MNOCI-6F
$253.54
Regular price
$261.04
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
3V2MNOCI-6F
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Direct-acting structure with responsive directional switching; Available in normally closed (NC) and normally open (NO) configurations;
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
Operational note:
Maintain minimum 85% duty cycle for continuous operation.
Use surge suppressor (RC circuit) when controlling with PLCs.
Lubricate pivot points every 500,000 cycles in high-usage scenarios.
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
AirTAC 3V2MNOCI-6F Solenoid Valve Technical Details
- Full model code: 3V2MNOCI-6F
- Valve type: 3/2-way normally closed (direct-acting)
- Port thread: G1/8 (ISO228 standard)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow coefficient (Cv): 0.85
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Seal material: Heat-resistant NBR (Nitrile) with PTFE coating
- Ambient temperature: -20℃ to 80℃ (non-freezing)
- Fluid temperature: 0℃ to 60℃
- Protection class: IP67 (dustproof & temporary immersion)
- Electrical connection: DIN43650-A standard socket
- Weight: 185g ±3% (without connector)
- Body dimensions: 50mm(L) × 35mm(W) × 70mm(H)
- Port spacing: 18mm center-to-center
- Power consumption: 2.2W (AC), 2.6W (DC)
High-speed switching valve with copper-free aluminum alloy body for corrosion resistance in humid environments. Features manual override button for system debugging and emergency control. Requires ISO 8573-1:2010 Class 3.4.2 compressed air (max 5μm particle size, oil content ≤1mg/m³).
Industrial Applications:
- Robotic arm end-effector controls
- Plastic injection molding machine ejectors
- Textile machinery pneumatic actuators
- Semiconductor wafer handling systems
- Electric vehicle battery cooling circuits
Operational note:
Maintain minimum 85% duty cycle for continuous operation.
Use surge suppressor (RC circuit) when controlling with PLCs.
Lubricate pivot points every 500,000 cycles in high-usage scenarios.
| Property | Property Value |
|---|---|
| sku | 3V2MNOCI-6F |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Standard Voltage | AC 110V |
