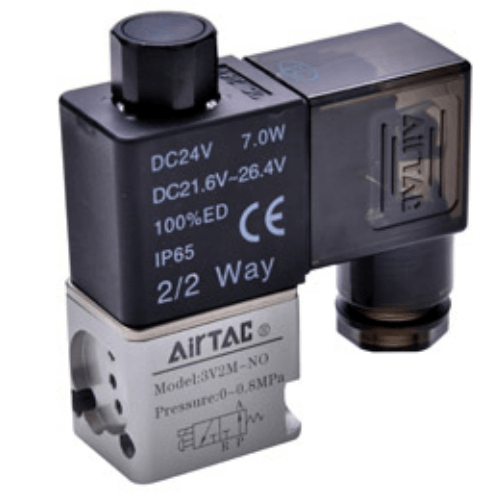

Airtac 3V2M Solenoid Valve 3V2MNOEI-2F
2、Coaxial shut-off design ensures excellent sealing performance and high flow capacity; Requires no oil lubrication;
3、Equipped with manual override for simplified installation and commissioning;
4、Modular design with base mount enables multi-valve integration for space-saving configurations;
5、Centralized air supply and integrated wiring streamline troubleshooting during fault diagnosis;
6、Flexible and scalable configuration supports arbitrary combinations or expansion of valve quantities/types;
7、Dedicated base gasket design – Flipping the gasket does not allow NC/NO conversion.
Category: Solenoid Valves , Brand: AirTAC , Series: 3V2M
AirTAC 3V2MNOEI-2F Solenoid Valve Specifications
- Model: 3V2MNOEI-2F
- Type: 3/2-way normally open (direct-acting)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure: 0.05–0.7 MPa
- Voltage options: DC24V (±10%)
- Power consumption: 1.6W (at 20℃)
- Response time: ≤15ms (open/close)
- Flow coefficient (Cv): 0.65
- Weight: 185g ±5g
- Dimensions: 52mm(L) × 34mm(W) × 63mm(H)
- Seal material: FKM (Viton®) for high temp variant, standard NBR
- Temperature range: -10℃ to 80℃ (NBR), -10℃ to 150℃ (FKM)
- Protection rating: IP67 (dust/water resistant)
- Port thread standard: ISO 228-1 (BSPP)
- Max viscosity: 32 cSt
High-response solenoid valve with manual override button for emergency operation. Features brass body with electroless nickel plating for corrosion resistance. The dual-chamber design minimizes pressure loss while maintaining 1.5 million cycle durability. Requires 5μm filtered air with oil mist lubrication (ISO VG32 recommended).
- Textile machinery tension control systems
- Beverage canning line actuators
- Lithium battery production vacuum circuits
- Semiconductor cleanroom pneumatic tools
- Automotive welding robot end-effectors
Installation tip:
Use copper-free anti-seize compound on threads. For horizontal mounting,
position coil vertically upward. Maintain 0.3-0.5MPa backpressure
during cold start to prevent seal damage.
| Property | Property Value |
|---|---|
| sku | 3V2MNOEI-2F |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Standard Voltage | AC24V |
