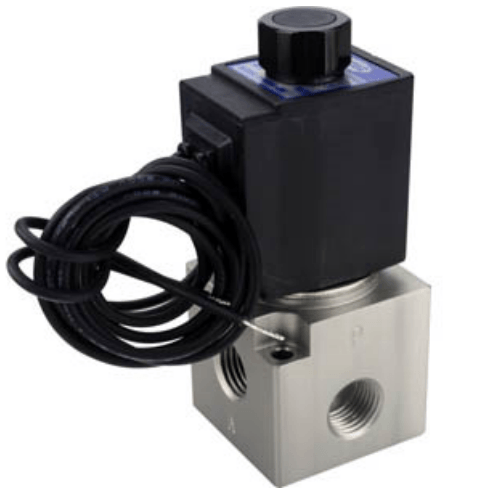

Airtac 3V3 Solenoid Valve 3V308NCBI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NCBI Solenoid Valve Technical Details
- Model: 3V308NCBI
- Type: 3-position, 5-way (3V3 series) with center closed position
- Operation: Double solenoid pilot-operated
- Port size: G1/8 (ISO228 standard)
- Thread type: Parallel (NPT optional)
- Operating pressure: 0.1–0.9 MPa (14.5–130.5 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Max flow rate: 750 L/min (ANR)
- Response time: ≤25ms (excitation), ≤35ms (de-excitation)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Temperature range: -10℃ to 80℃ (with intermittent operation up to 120℃)
- Weight: 320g ±5% (without connector)
- Dimensions: 54mm(L) × 40mm(W) × 72mm(H)
- Protection class: IP67 (dust tight, protected against temporary immersion)
- Electrical connection: DIN43650 Form A connector
- Hysteresis: ≤10% of rated voltage
High-flow 5/3-way solenoid valve designed for complex pneumatic circuits requiring intermediate position control. Features brass body with hard anodized aluminum core tube for enhanced corrosion resistance. The dual coil design allows latching function for energy-saving operation. Includes manual override and position-indication LED (optional). Requires 5μm filtered lubricated air (ISO8573-1 class 4).
- Automated clamping systems with mid-position safety lock
- Plastic injection molding machine actuators
- Textile machinery tension control systems
- Automotive tire assembly line equipment
- Bottle cap threading machines
- CNC tool changers requiring position memory
Installation guidelines:
Mount horizontally with coil axis vertical. Maintain minimum 15mm clearance
from adjacent components. Use anti-vibration washers in high-shock environments.
For continuous operation, keep ambient temperature below 60℃.
Critical note:
Do NOT use silicone-based lubricants. Cycle rate must not exceed
80% of maximum rated frequency (5Hz) for extended service life.
| Property | Property Value |
|---|---|
| sku | 3V308NCBI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
| Standard Voltage | DC24V |
