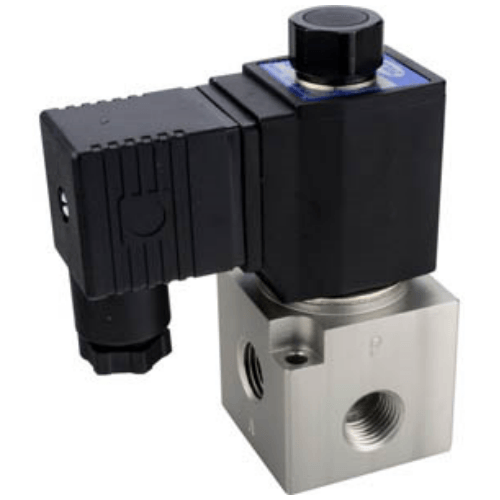

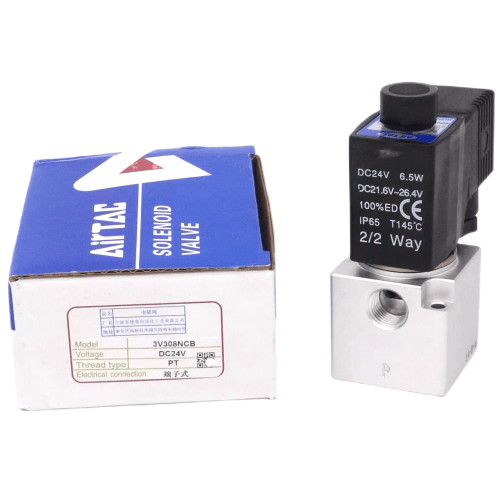

Airtac 3V3 Solenoid Valve 3V308NCCI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NCCI Solenoid Valve Technical Specifications
- Model: 3V308NCCI
- Type: 3/2-way normally closed (direct-acting)
- Port size: PT1/4 (G1/8 optional)
- Thread standard: ISO228/1 (BSPP)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage tolerance: ±10%
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow coefficient (Cv): 0.65
- Max cycling rate: 5Hz
- Weight: 230g ±5% (excluding cable)
- Dimensions: 52mm(L) × 34mm(W) × 65mm(H)
- Seal material: Nitrile Butadiene Rubber (NBR) standard (FKM/Viton optional)
- Temperature range: -20℃ to 80℃ (with NBR seals)
- Power consumption: 1.6W (DC), 3.2VA (AC)
- Protection rating: IP67 (coil), IP40 (valve body)
- Service life: ≥10 million cycles (at rated conditions)
High-cycle solenoid valve with dual-chamber design for improved flow dynamics, featuring brass body construction with chrome-plated spool for corrosion resistance. The optimized magnetic circuit ensures stable operation under voltage fluctuations. Requires ISO 8573-1:2010 Class 3.4.2 compressed air (40μm filtration, dew point -25℃).
- High-speed bottle filling/capping machines
- Semiconductor wafer handling robotics
- Textile machinery tension control systems
- Commercial coffee machine brew groups
- Automotive tire inflation systems
- Pharmaceutical blister packaging lines
Installation requirements:
Maintain horizontal piping alignment with arrow markings.
Use anti-vibration mounting brackets in applications exceeding 3Hz cycling.
Lubricate air supply (ISO VG32 turbine oil mist) if operating below 0.3MPa.
| Property | Property Value |
|---|---|
| sku | 3V308NCCI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
| Standard Voltage | AC 110V |
