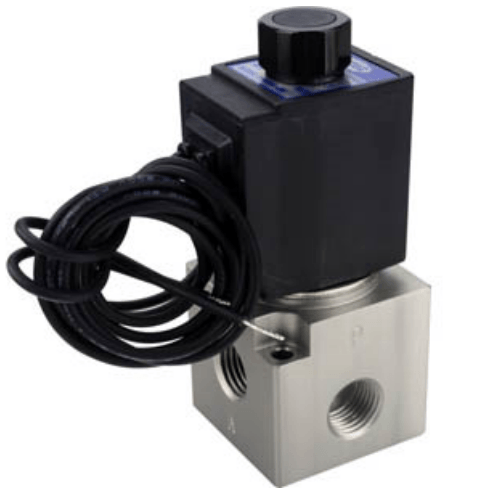

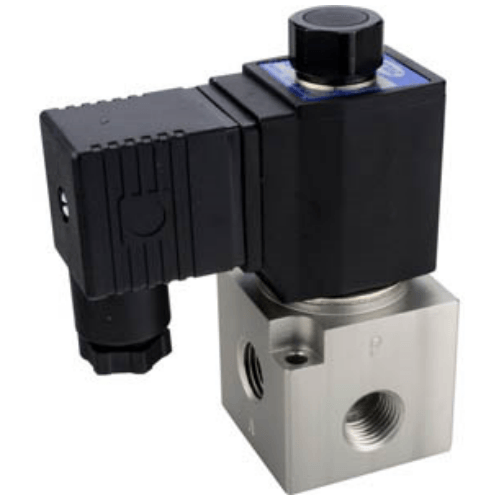

Airtac 3V3 Solenoid Valve 3V308NCEI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NCEI Solenoid Valve Technical Details
- Model Identification: 3V308NCEI
- Valve Type: 3/2-way normally closed (pilot-operated with manual override)
- Port Configuration: PT3/8 (G3/8 ISO228-1 compliant)
- Pressure Range: 0.15–1.0 MPa (enhanced range for industrial applications)
- Voltage Variants: DC12V/24V (±10%), AC110V/220V (50/60Hz)
- Current Draw: 0.45A (DC24V), 0.15A (AC220V)
- Weight: 320g ±5% (with coil assembly)
- Body Dimensions: 70mm(L) × 40mm(W) × 82mm(H) (excluding fittings)
- Seal Configuration: Triple-layer sealing with HNBR/NBR compound
- Temperature Tolerance: -30℃ to 90℃ (peak transient 120℃)
- Response Time: ≤15ms (pressurized actuation)
- Flow Capacity: 800 L/min (Cv=1.3 at 0.5MPa)
- Protection Class: IP67 (dust/immersion resistant) & CE certified
- Endurance: ≥10 million cycles (at rated conditions)
High-flow industrial solenoid valve with rugged aluminum alloy body and copper-free piston design. Features surge protection circuitry and shock-resistant coil construction. Optimized for high-cycle applications requiring rapid switching and minimal pressure drop. Requires 25μm filtration with automatic drain.
- Plastic injection molding machine cylinder control
- CNC machine tool clamp sequencing
- Automotive tire assembly line actuators
- Food processing vacuum/pressure systems (oil-free version available)
- Hydraulic system pilot stage control
Operational Advisory:
Install vibration dampeners when used with pulsating equipment.
Maintain 0.3-0.5 MPa lubrication pressure for models with air-oil mist systems.
Allow 15-minute cool-down cycle after continuous 8-hour high-frequency operation.
| Property | Property Value |
|---|---|
| sku | 3V308NCEI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
| Standard Voltage | AC24V |
