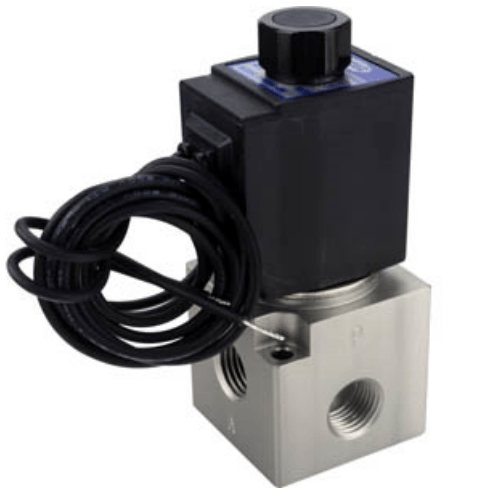

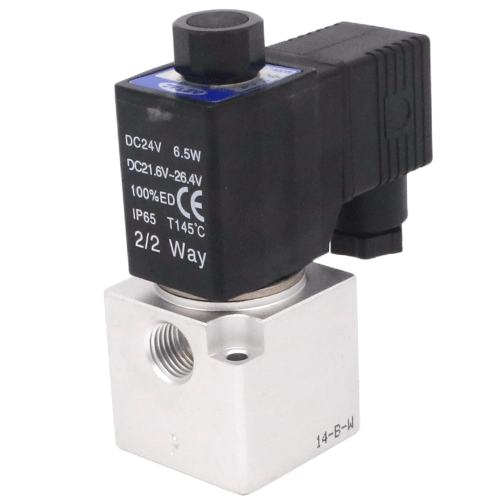

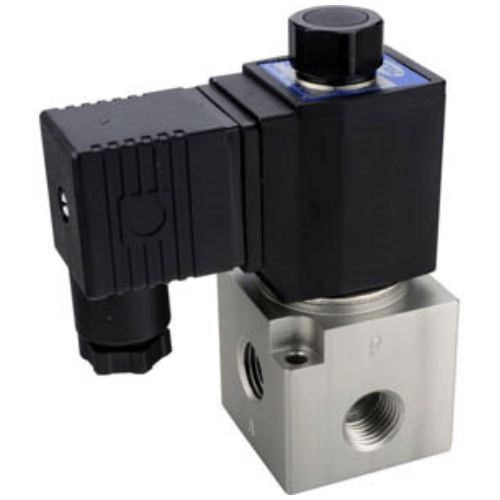

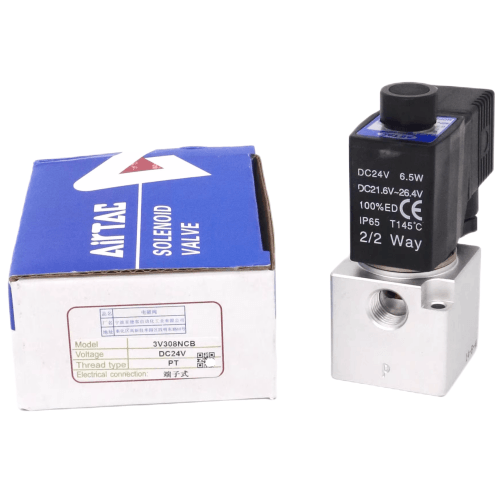

Airtac 3V3 Solenoid Valve 3V308NOAI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOAI Solenoid Valve Technical Specifications
- Model: 3V308NOAI
- Type: 3/2-way normally open (direct-acting)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure: 0.05–0.8 MPa
- Voltage variants: DC12V, DC24V, AC110V, AC220V (customizable)
- Flow coefficient (Cv): 1.8
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Weight: 280g ±5g
- Dimensions: 54mm(L) × 40mm(W) × 78mm(H)
- Seal material: FKM fluorocarbon (standard), EPDM optional
- Temperature range: -10℃ to 80℃ (extended to 120℃ with FKM seals)
- Power consumption: 2.5W (AC), 3.5W (DC)
- Protection class: IP67 (dustproof and waterproof)
- Port thread depth: 10mm (both inlet and outlet)
- Max operating cycles: 10 million (with clean air)
High-flow solenoid valve with low-pressure activation capability, featuring dual-chamber design for rapid response. The aluminum alloy body with hard anodizing treatment ensures corrosion resistance in humid environments. Integrated surge suppression protects coil longevity. Requires 5μm filtered compressed air with max 0.1% oil content.
- Automated assembly line clamping systems
- Plastic injection molding machine ejectors
- CNC tool changers and coolant control
- Food processing pneumatic actuators
- Battery manufacturing vacuum breakers
Installation guidelines:
Mount in vibration-free locations using M4 mounting screws (not included).
Maintain 15° maximum deviation from vertical orientation.
Install upstream 0.5-1m after lubricator for optimal performance.
Replace seals every 50,000 cycles in high-humidity environments.
| Property | Property Value |
|---|---|
| sku | 3V308NOAI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | AC220V |
