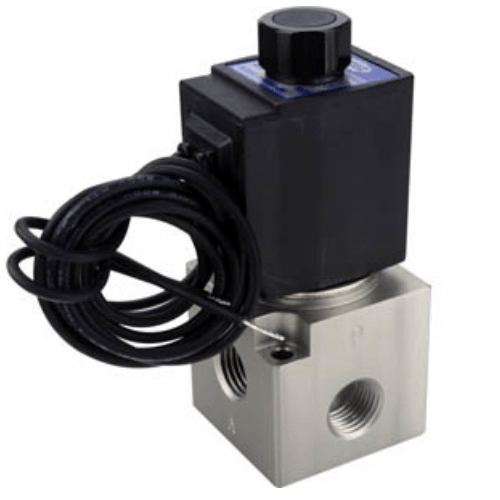

Airtac 3V3 Solenoid Valve 3V308NOC
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOC Solenoid Valve Technical Specifications
- Model: 3V308NOC (Full designation: 3V3-08-N-O-C)
- Valve type: 3/2-way normally closed (pilot-operated)
- Port configuration: PT3/8 (G3/8 optional)
- Effective area: 78mm²
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155°C)
- Response time: ≤20ms (energize), ≤30ms (de-energize)
- Flow rate: 1200Nl/min (Cv=1.8 at 0.5MPa)
- Ambient temperature: -5℃ to 60℃ (no freezing)
- Fluid temperature: 0–60℃
- Seal material: HNBR (Hydrogenated Nitrile) for improved oil resistance
- Body material: Die-cast aluminum with epoxy coating
- Weight: 395g ±5% (excluding connector)
- Dimensions: 75mm(L) × 50mm(W) × 85mm(H)
- Protection rating: IP67 (dust tight & protected against temporary immersion)
- Electrical connection: DIN43650 Form A with LED indicator
High-flow industrial solenoid valve featuring zero-pressure differential activation and surge protection circuitry. The optimized spool design reduces hysteresis while maintaining 10 million cycle durability. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.4.3 air quality. Compatible with ISO VG32 hydraulic oil mist lubrication.
- Plastic injection molding machine ejectors
- CNC tool changers with rapid cycling requirements
- Pneumatic conveyor diverter valves
- Automated assembly line clamping systems
- Food processing equipment (requires optional FDA seals)
Installation protocol:
Mount in vibration-dampened orientation (max. 1G vibration tolerance).
Use copper-free anti-seize compound on threaded ports.
Allow 15-minute stabilization period after installation before full-load operation.
| Property | Property Value |
|---|---|
| sku | 3V308NOC |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | AC 110V |
