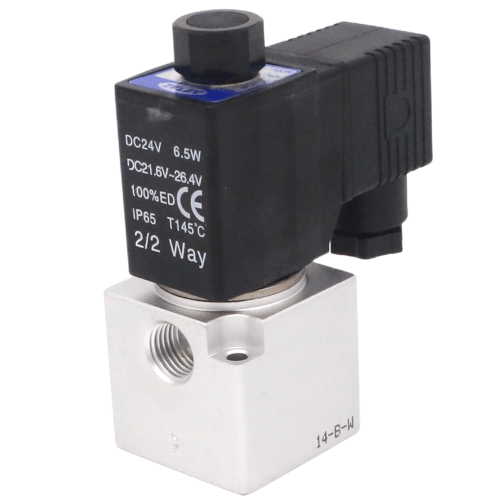

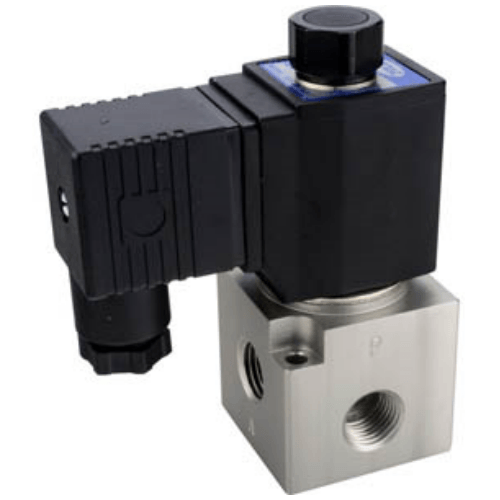

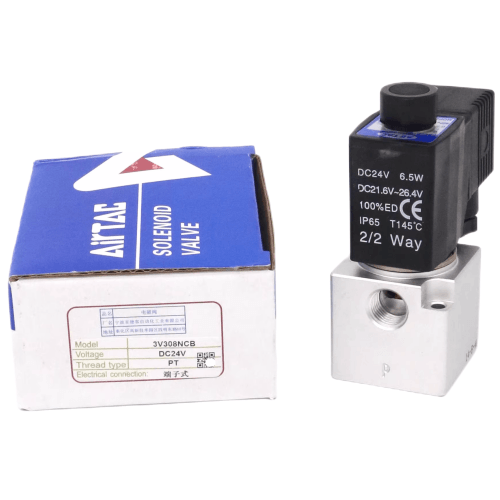

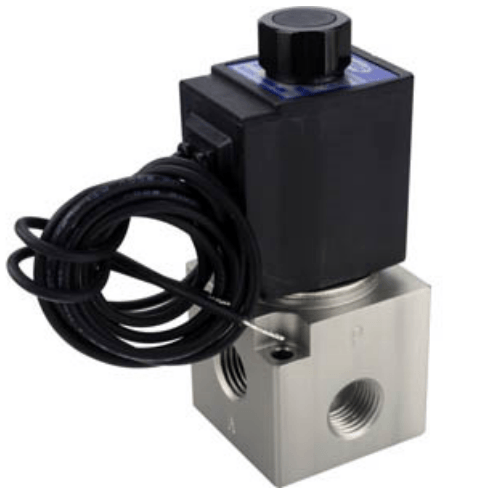

Airtac 3V3 Solenoid Valve 3V308NOCI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOCI Solenoid Valve Technical Specifications
- Model: 3V308NOCI
- Valve type: 3/2-way normally closed (direct-acting)
- Port configuration: PT3/8 (G3/8 optional)
- Flow coefficient (Cv): 2.2
- Operating pressure range: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Response time: ≤15ms (open/close cycle)
- Weight: 320g ±5% (without connector)
- Dimensions: 85mm(L) × 45mm(W) × 75mm(H)
- Seal materials: HNBR (Hydrogenated Nitrile) with stainless steel plunger
- Ambient temperature range: -20℃ to +80℃ (non-freezing)
- Power consumption: 2.5W (AC), 3.6W (DC)
- Protection class: IP67 (dustproof/water-resistant)
- Max flow rate: 800 L/min (ANR)
- Port thread depth: 12mm (minimum engagement)
High-flow solenoid valve with rugged aluminum alloy body and anti-vibration design. Features integrated manual override and surge protection circuitry. Optimized for high-cycle applications requiring rapid response and energy efficiency. Requires ISO 8573-1:2010 Class 3.4.3 compressed air (max 5μm particle size).
- CNC machine tool clamping systems
- Plastic injection molding machines
- Automated assembly line actuators
- Textile machinery pneumatic controls
- Beverage filling station pneumatics
- Railway braking system test benches
Installation guidelines:
Mount with vibration-damping brackets in high-shock environments.
Maintain minimum 20mm clearance below valve for heat dissipation.
Use copper-free lubricants if required. Precede with 5μm filter regulator.
| Property | Property Value |
|---|---|
| sku | 3V308NOCI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | AC 110V |
