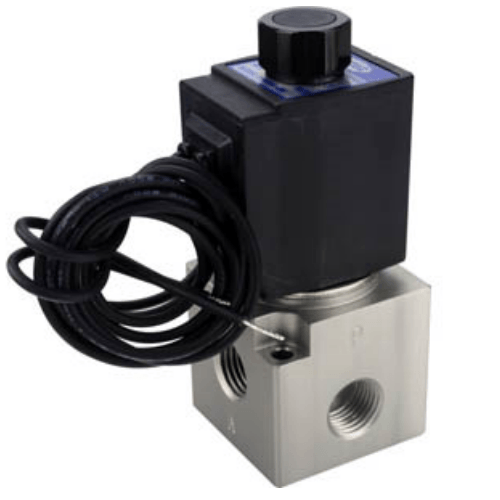

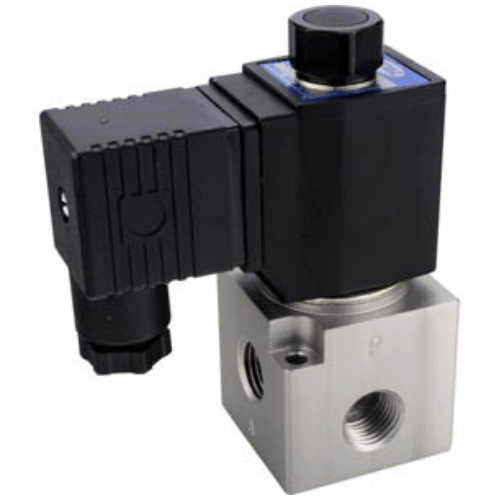

Airtac 3V3 Solenoid Valve 3V308NOE
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOE Solenoid Valve Technical Details
- Model: 3V308NOE
- Type: 3/2-way normally open (direct-acting)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow coefficient (Cv): 1.6
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Weight: 420g ±5% (including connector)
- Dimensions: 70mm(L) × 48mm(W) × 78mm(H)
- Seal material: NBR/FKM optional (standard NBR)
- Temperature range: -5℃ to 80℃ (fluid/ambient)
- Power consumption: 2.5W (DC), 3.5VA (AC)
- Protection rating: IP67 (connector included)
- Port thread depth: 12mm (both inlet/outlet)
High-flow solenoid valve with direct-acting mechanism, featuring brass body construction for enhanced durability in industrial environments. Designed for rapid cycling applications requiring frequent actuation (up to 5Hz operation). Includes surge suppression circuit for extended coil life. Requires 5μm filtered air with oil mist (ISO 8573-1 class 4).
- Pneumatic cylinder control in assembly lines
- Material handling systems (vacuum/pressure switching)
- Food processing machinery (FKM seal version)
- Textile manufacturing equipment
- Automated packaging systems
- Plastic injection molding machines
Installation guidelines:
Mount in vibration-free area using M4 screws (max torque 1.2N·m).
Maintain minimum 50mm clearance below valve for exhaust airflow.
Lubricate with ISO VG32 pneumatic oil if using non-lubricated air.
| Property | Property Value |
|---|---|
| sku | 3V308NOE |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | AC24V |
