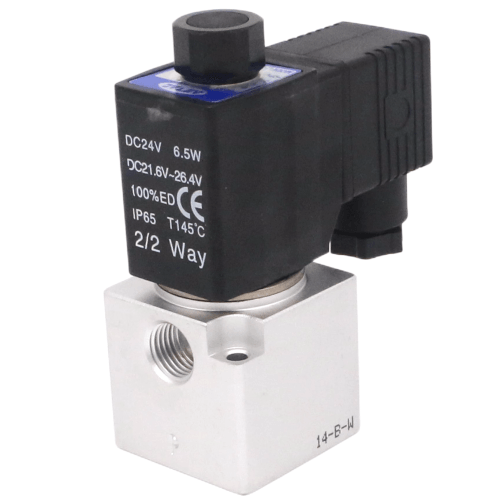

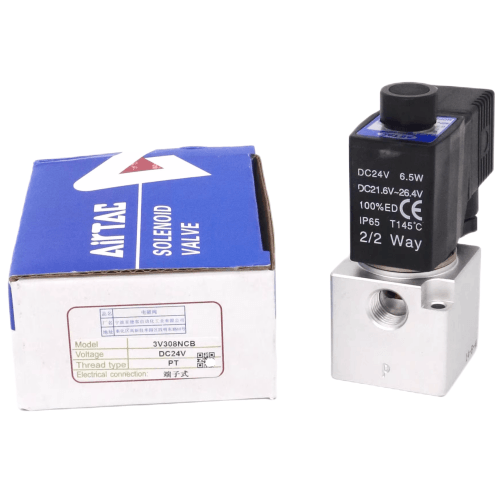

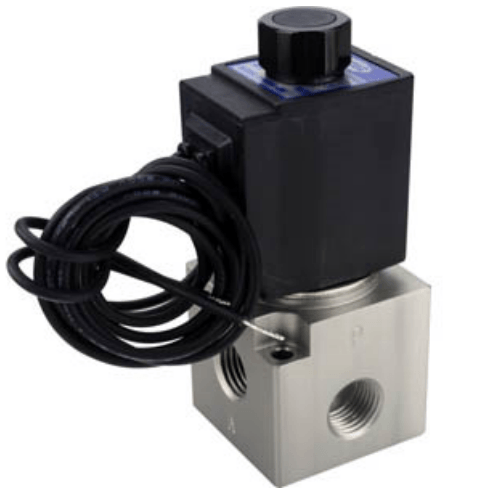

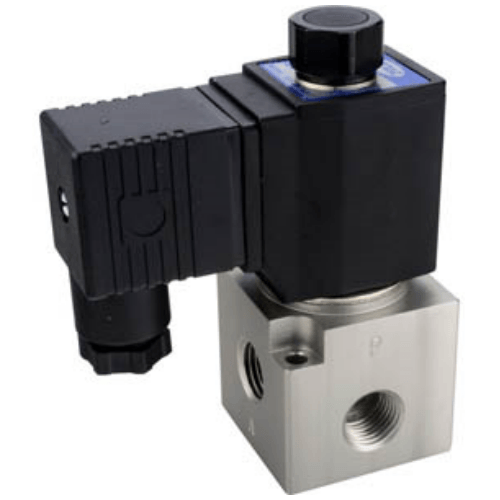

Airtac 3V3 Solenoid Valve 3V308NOF
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOF Solenoid Valve Specifications
- Model: 3V308NOF
- Type: 3/2-way normally open (direct-acting)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 psi)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow coefficient (Cv): 2.2
- Response time: ≤15ms (open/close)
- Seal material: NBR (Nitrile Butadiene Rubber)
- Temperature range: -20℃ to 70℃ (fluid/ambient)
- Power consumption: 1.6W (DC), 2.2VA (AC)
- Protection rating: IP67 (dust/water resistant)
- Weight: 320g ±5%
- Dimensions: 54mm(L) × 34mm(W) × 70mm(H)
- Port thread standard: ISO 228/1 (BSPP)
- Max cycling rate: 5Hz (300 cycles/min)
A high-flow solenoid valve engineered for industrial automation systems requiring rapid response and durable performance. Features brass body construction with hard-anodized aluminum solenoid housing for corrosion resistance. The direct-acting design eliminates minimum pressure requirements, enabling reliable operation in vacuum applications. Compatible with compressed air and inert gases (N₂ recommended). Requires 5μm filtered/dried air with oil mist ≤1mg/m³.
- Pneumatic cylinder control in assembly lines
- Vacuum pump systems in semiconductor manufacturing
- Material handling equipment (hoppers, conveyors)
- Textile machinery air flow management
- Beverage dispensing systems
- Automotive testing jigs
Installation guidelines:
Mount in any orientation (preferred vertical). Use flexible tubing to reduce vibration transfer.
Install downstream pressure regulator within 1m. Lubricate with ISO VG32 turbine oil if used in high-cycle (>3Hz) applications.
| Property | Property Value |
|---|---|
| sku | 3V308NOF |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | DC12V |
