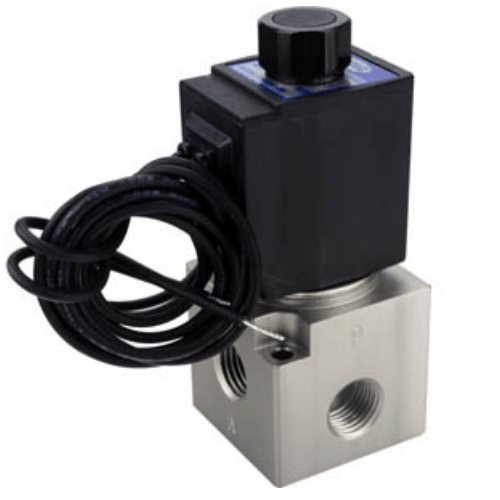

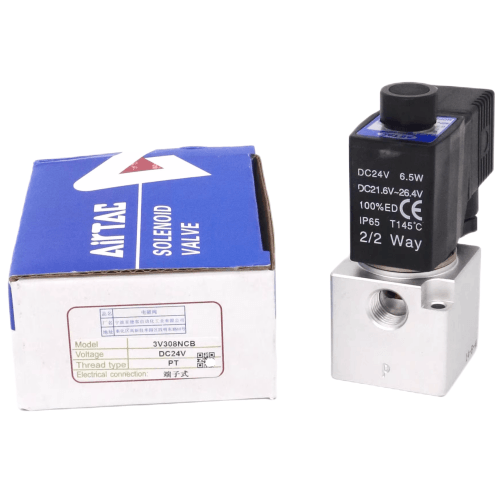

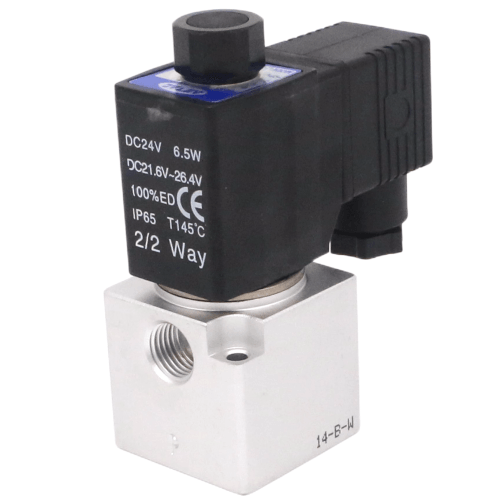

Airtac 3V3 Solenoid Valve 3V308NOFI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOFI Solenoid Valve Technical Details
- Model Code: 3V308NOFI
- Valve Type: 3/3-way normally open (direct-acting)
- Port Configuration: PT1/4 (G1/4 optional)
- Operating Pressure Range: 0.05–1.0 MPa (extended range)
- Voltage Variations: DC12V (±10%), DC24V (±10%), AC110V (±10% 50/60Hz), AC220V (±10% 50/60Hz)
- Flow Capacity: 750 l/min (ANR) at 0.5 MPa
- Response Time: ≤15ms (energize), ≤20ms (de-energize)
- Seal Material: Fluorocarbon Rubber (FKM) standard, optional HNBR for chemical resistance
- Ambient Temperature: -20℃ to +80℃ (extended upper limit)
- Power Consumption: 2.2W (DC), 3.5VA (AC)
- Electrical Protection: IP67 (dustproof & waterproof)
- Weight: 180g ±5g (with connector)
- Dimensions: 52mm(L) × 35mm(W) × 72mm(H) (excluding mounting brackets)
- Port Thread Depth: 12mm (internal threading)
- Cycle Life: ≥10 million operations
High-cycle 3-position solenoid valve with center exhaust function, featuring triple-coil protection against voltage spikes. The T-slot design enables tool-free manifold stacking. Integrated LED status indicator and built-in 40μm sintered filter. Meets ISO 15407-1 standards for industrial durability.
- Pneumatic cylinder mid-position control systems
- Robotic arm clamping sequence operations
- CNC machine tool coolant control
- Beverage filling line pressure balancing
- Lithium battery production vacuum/pressure switching
Installation Guidelines:
Maximum allowable mounting torque of 2.5N·m for port connections.
Requires minimum 5μm downstream filtration for abrasive environments.
For vertical mounting, position electrical connector upward to prevent debris accumulation.
| Property | Property Value |
|---|---|
| sku | 3V308NOFI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | DC12V |
