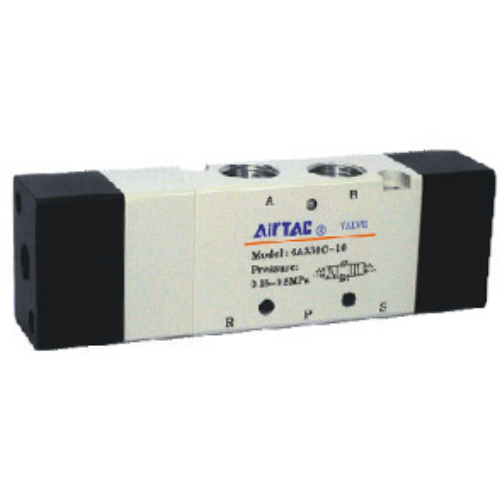

Airtac 4A300 Pneumatic Valve 4A330P10
2. 3-position pneumatic valve offers three selectable center position configurations;
3. Double solenoid control for 2-position valve with latching function maintains position memory;
4. Precisely machined internal bore with specialized surface treatment delivers reduced friction resistance, lower actuation pressure, and extended service life;
5. Maintenance-free operation without lubrication requirement;
6. Modular design with base manifold compatibility optimizes space utilization;
Category: Pneumatic Valves, Brand: AirTAC, Series: 4A300
AirTAC 4A300/4A330P10 Pneumatic Valve Technical Details
- Model Series: 4A300 (Standard) / 4A330P10 (Enhanced Pilot Type)
- Valve Type: 5-port 3-position closed center (4A300) / 5-port 2-position (4A330P10)
- Port Thread: G1/8 (ISO228 standard) with NPT optional
- Operating Pressure: 0.2–1.0 MPa (4A300) / 0.15–1.0 MPa (4A330P10)
- Voltage Variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil Insulation: Class F (155℃ rated)
- Response Time: ≤15ms (4A300) / ≤20ms (4A330P10)
- Flow Capacity: 850 l/min (Cv=1.2) at 0.5MPa
- Seal Material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Ambient Temperature: -10℃ to 80℃ (with intermittent 100℃ tolerance)
- Protection Class: IP67 (Dustproof/Water Immersion Protected)
- Weight: 480g ±5% (4A300) / 520g ±5% (4A330P10)
- Dimensions: 98mm(L) × 34mm(W) × 72mm(H) (4A300)
105mm(L) × 36mm(W) × 75mm(H) (4A330P10)
High-flow pneumatic directional valves featuring dual-pressure operation capability and shock-resistant brass body construction. The 4A330P10 variant incorporates a pilot-assisted actuation mechanism for reduced coil heating. Both models utilize corrosion-resistant stainless steel spools and include manual override functionality. Requires 5μm filtered compressed air with lubrication (ISO 8573-1 Class 3.4.2).
- Plastic injection molding machine clamp control
- Automated assembly line cylinder sequencing
- Textile machinery tension control systems
- Food processing pneumatic actuators (FDA-compliant grease option)
- Electric vehicle battery pack assembly jigs
Installation Guidelines:
Mount with vibration-damping brackets in high-shock environments.
Maintain 0.3-0.5MPa pilot pressure for 4A330P10 models.
Allow 15-minute degaussing period after continuous 8-hour operation.
| Property | Property Value |
|---|---|
| sku | 4A330P10 |
| Position | 5-port 3-position |
| Port Size | PT3/8 |
