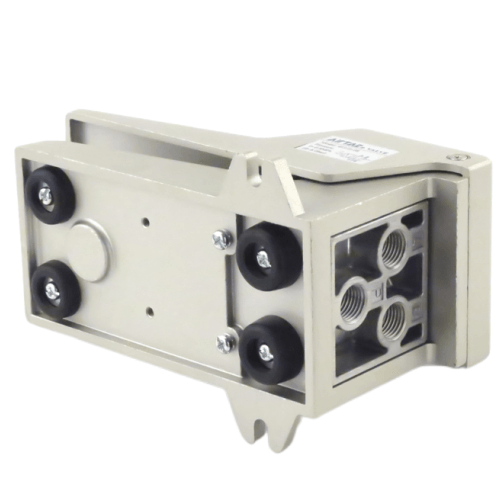

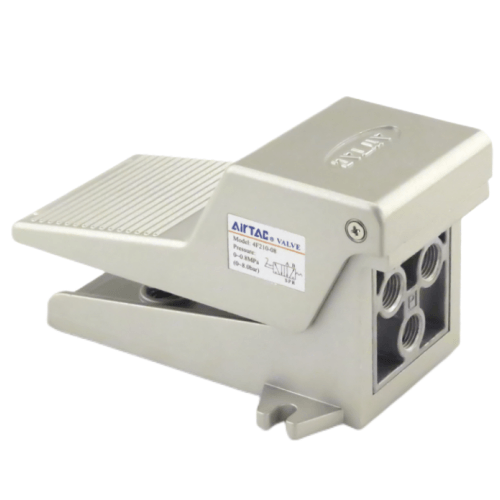

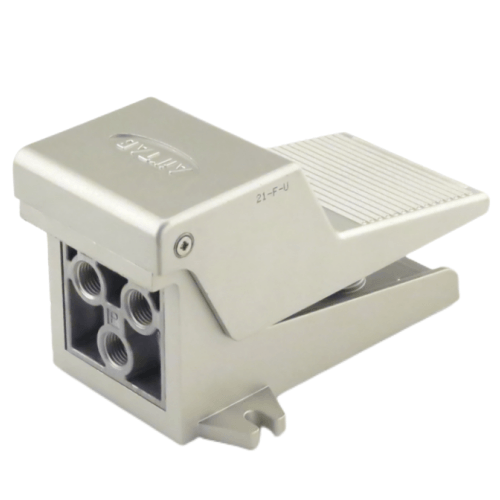

Airtac 4F Foot Pedal Valve 4F210-08LF
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Lockable variant available for applications requiring extended directional holding;
3. Robust locking mechanism ensures secure engagement with smooth quick-release action. Note: Structural constraints limit suitability for frequent high-impact scenarios;
4. Optional high-strength plastic protective cover enhances durability.
Category: Foot Valve , Brand: Airtac , Series: 4F
AirTAC 4F210-08LF Foot Pedal Valve Technical Details
- Model: 4F210-08LF
- Type: 2-position pedal-operated directional valve (4F series)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (Cv=1.2)
- Actuation force: 20-30N pedal pressure
- Body material: Die-cast aluminum alloy (anodized finish)
- Seal material: HNBR rubber (-20℃ to 80℃)
- Pedal stroke: 15±2mm travel distance
- Weight: 680g ±5% (including mounting hardware)
- Dimensions: 132mm(L) × 98mm(W) × 45mm(H)
- Mounting pattern: ISO 6431 standard
- Protection rating: IP54 (dust/water resistant)
Ergonomic foot-operated valve with progressive pedal action, featuring a low-profile design for floor mounting. The dual-spring return mechanism ensures positive position reset, while the textured anti-slip pedal surface enhances safety in oily environments. Requires 5-7 bar lubricated or non-lubricated air supply.
- Medical bed height adjustment systems
- Industrial workbench clamping controls
- Packaging line emergency stop stations
- Automotive repair shop lifting equipment
- Food processing hands-free operations
Installation guidance:
Mount on flat surfaces using M5 bolts (not included). Maintain 50mm
clearance above pedal for full actuation. Lubricate pivot points
every 50,000 cycles with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 4F210-08LF |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
