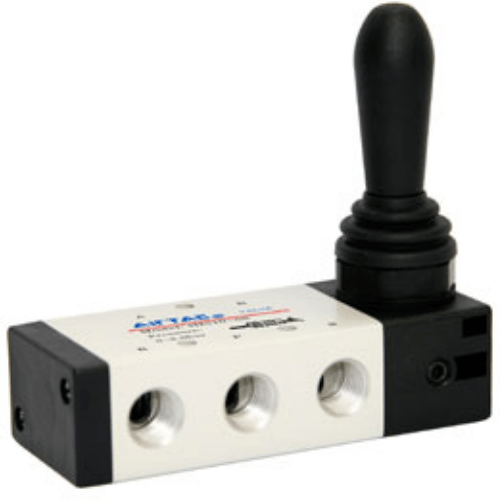

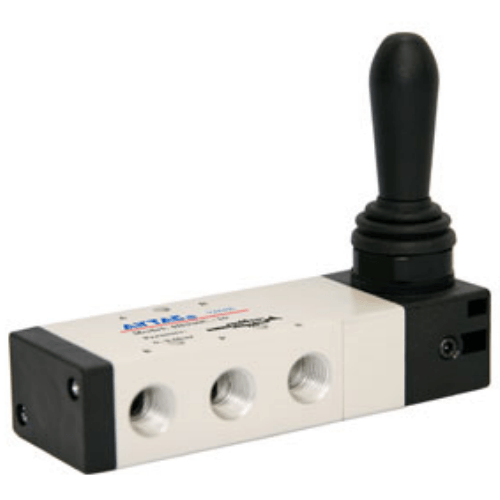

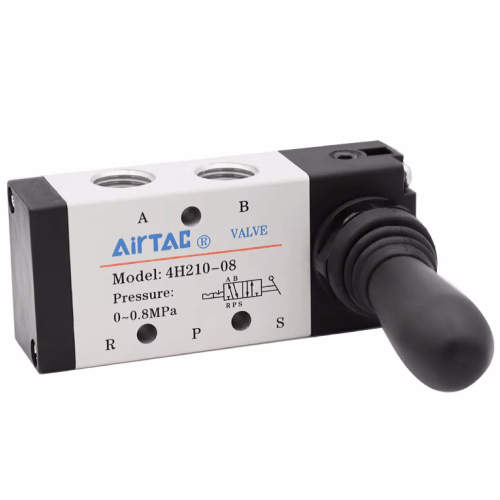

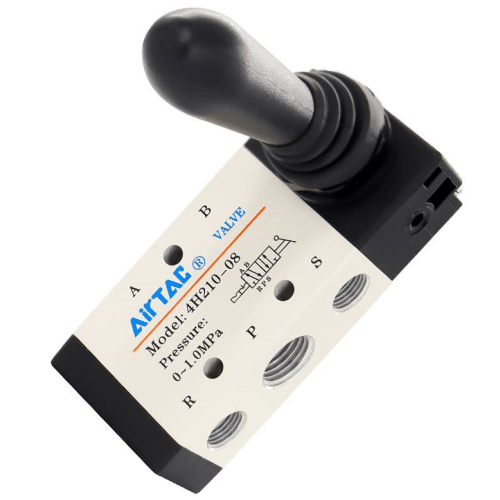

Airtac 4H Manual Valve 4H210-08
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H210-08 Manual Valve Technical Specifications
- Model: 4H210-08
- Type: 4-way, 2-position manual valve (lever operated)
- Port configuration: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Maximum flow rate: 750 L/min (Cv=1.2)
- Valve body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile) standard (Viton optional)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 215g ±5g (without accessories)
- Dimensions: 80mm(L) × 40mm(W) × 65mm(H)
- Port thread depth: 12mm (minimum engagement)
- Actuation force: ≤3.5N (lever operation)
- Leakage rate: <3 bubbles/min (under 0.5MPa pressure)
Heavy-duty manual directional control valve with positive center position lock, featuring a wear-resistant brass core and ergonomic lever design. The 45° angled port configuration enables space-efficient plumbing in complex pneumatic circuits. Includes built-in mounting lugs with M4 threaded holes for secure panel attachment.
- Industrial machinery manual override systems
- Pneumatic press brake controls
- Assembly line emergency stop circuits
- Training equipment for fluid power education
- Mobile hydraulic/pneumatic hybrid systems
Maintenance Tip:
Lubricate pivot points annually with ISO VG32 hydraulic oil.
For dusty environments, install a 25μm pre-filter and inspect
O-rings every 6 months. Avoid side-loading the lever during
operation to prevent shaft deformation.
- Lever extensions available (50mm/100mm variants)
- Optional position indicator flags (red/yellow)
- Custom porting for manifold mounting (MX-4H210 series)
| Property | Property Value |
|---|---|
| sku | 4H210-08 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
