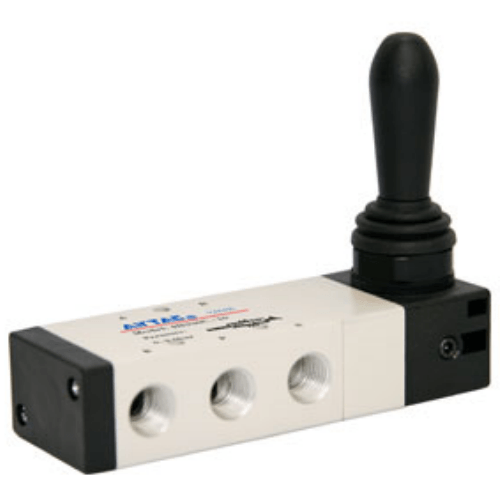

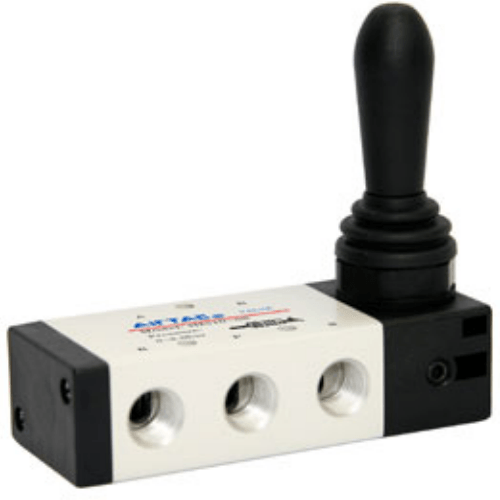

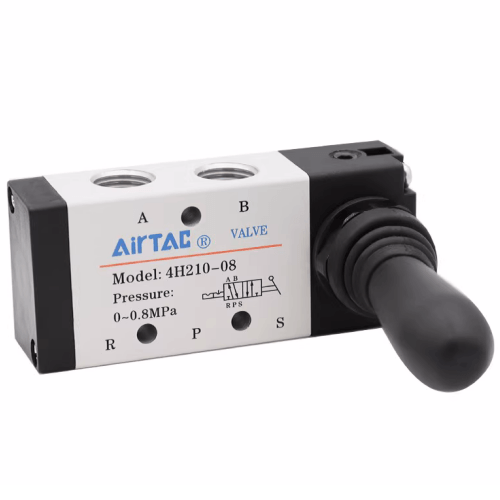

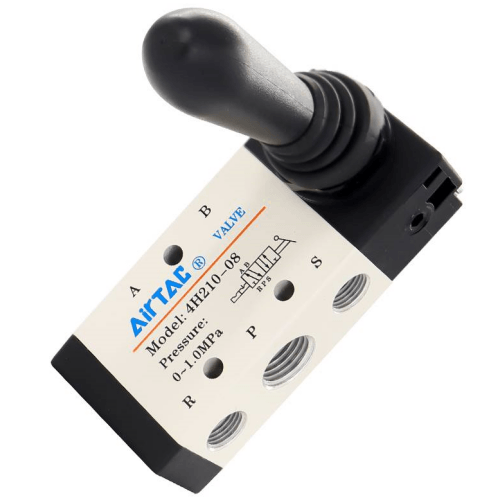

Airtac 4H Manual Valve 4H230C06
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H230C06 Manual Valve Specifications
- Model: 4H230C06
- Type: 4-way, 3-position manual lever valve (closed center)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 850 L/min (ANR)
- Manual operation: 90° lever rotation with detent positioning
- Body material: Aluminum alloy (hard anodized)
- Seal material: NBR (nitrile rubber)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 320g ±5% (including accessories)
- Dimensions: 78mm(L) × 34mm(W) × 42mm(H)
- Port thread depth: 12mm (all ports)
- Leakage rate: ≤3 bubbles/min (ISO 6952 test)
- Mounting: Direct piping or subplate (ISO 4401-03 compatible)
Heavy-duty manual override valve with precision detent mechanism, featuring a chrome-plated steel lever and wear-resistant pivot bearings. The closed-center design blocks all ports in neutral position, making it ideal for safety-critical applications. Includes anti-corrosion treatment for humid environments and industrial washdown conditions.
- Emergency shutdown systems in pneumatic circuits
- Manual mode override for automated production lines
- Hydraulic system maintenance bypass control
- Material handling equipment safety lockout
- Test bench pressure regulation
Installation note:
Apply 56-60 N·m torque during port connection. Lubricate pivot point
with ISO VG32 hydraulic oil quarterly. Avoid side-loading the lever
during operation to prevent internal seal wear.
| Property | Property Value |
|---|---|
| sku | 4H230C06 |
| Position | 5-port 3-position |
| Port Size | PT1/8 |
