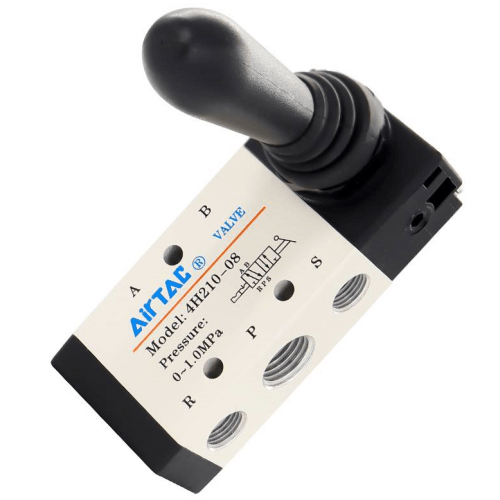

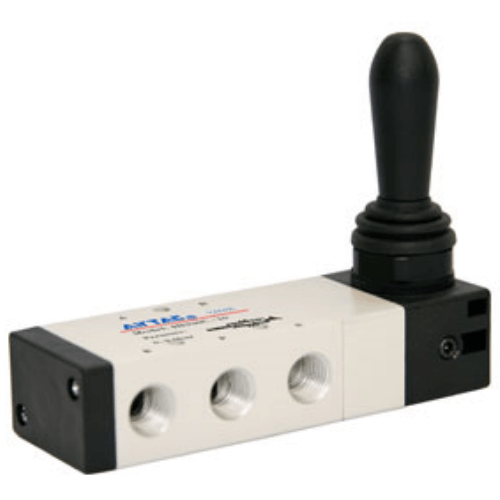

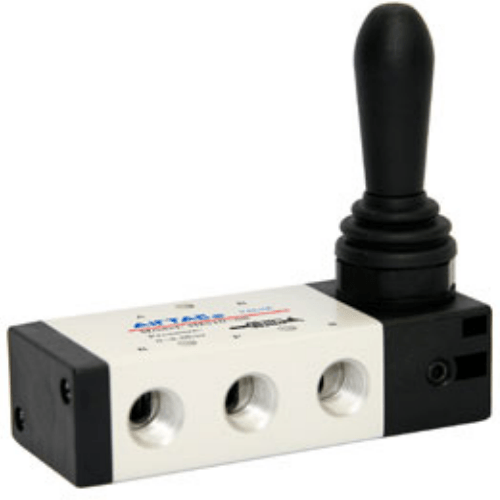

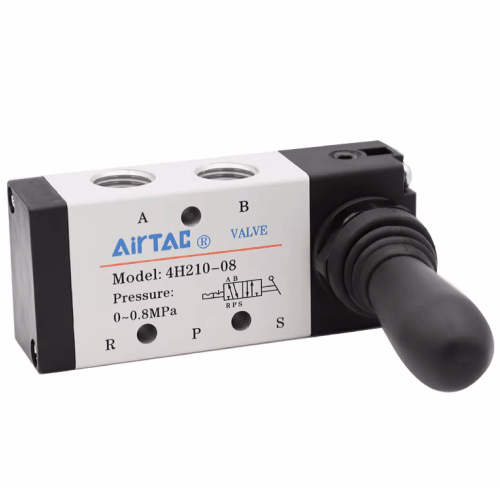

Airtac 4H Manual Valve 4H230C08
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H230C08 Manual Valve Technical Details
- Model: 4H230C08 (4H Series Manual Valve)
- Type: 3-position, 4-way manual directional valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 PSI)
- Maximum flow: 750 L/min (Cv=1.3)
- Valve body material: Aluminum alloy with hard anodizing
- Seal material: Nitrile rubber (NBR) standard (Viton available)
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Mounting style: Base plate mounting with 4×M5 screws
- Manual override: Rotary lever with 3-position detent
- Weight: 350g ±5% (0.77 lbs)
- Dimensions: 50mm(L) × 25mm(W) × 50mm(H)
- Port thread depth: 12mm (recommended pipe insertion)
Robust manual control valve featuring a positive center position lock mechanism and ergonomic lever design. The chrome-plated shaft and precision-machined spool ensure smooth operation even under fluctuating pressures. Designed for systems requiring manual override capability or frequent directional changes.
- Emergency stop circuits in injection molding machines
- Manual mode switching in pneumatic presses
- Training equipment for industrial automation education
- Maintenance bypass systems in conveyor lines
- Manual control of clamping fixtures
Operation tip:
Apply 0.5-1.5Nm torque when rotating lever. For continuous cycling applications,
perform monthly lubrication of pivot points using ISO VG32 hydraulic oil.
Critical note:
Do NOT use silicone-based lubricants - incompatible with NBR seals.
Always depressurize system before changing valve positions.
| Property | Property Value |
|---|---|
| sku | 4H230C08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
