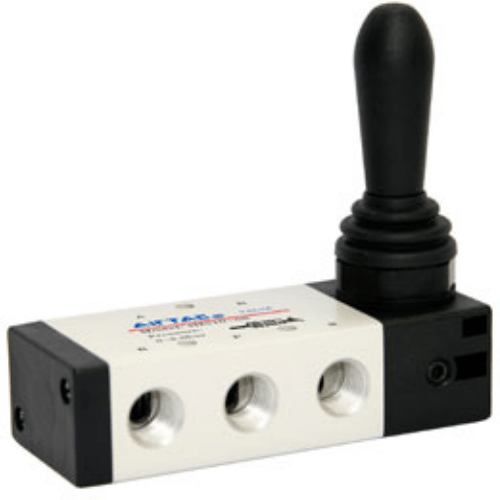

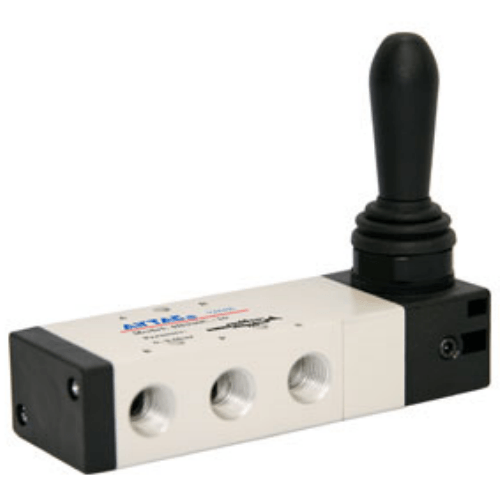

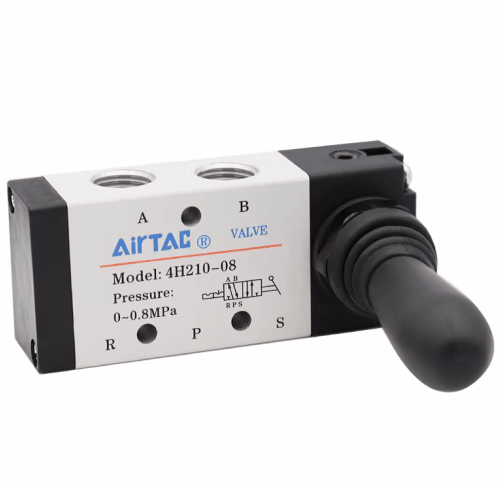

Airtac 4H Manual Valve 4H230E06
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H230E06 Manual Valve Technical Details
- Model: 4H230E06
- Type: 4-way/3-position manual directional valve
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa
- Manual operation: Rotary lever with detent positions
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -20℃ to 80℃
- Flow capacity: 850 L/min (ANR)
- Mounting orientation: Any (horizontal/vertical)
- Weight: 520g ±5%
- Dimensions: 60mm(L) × 40mm(W) × 70mm(H)
- Port thread depth: 12mm (fully engaged)
- Actuation torque: ≤1.5 N·m
Industrial-grade manual valve with positive center position, featuring tactile position feedback through ball-and-spring detent mechanism. The chrome-plated lever handle provides non-slip operation even with oily gloves. Designed for systems requiring manual override or frequent directional changes.
- Production line emergency stop systems
- Pneumatic fixture manual control
- Hydraulic system maintenance bypass
- Training equipment for fluid power education
- Mobile machinery manual override
Installation note:
Apply 56-58 N·m torque during port connection. Lubricate lever pivot
quarterly with ISO VG32 hydraulic oil. Position handle within 30°
of operator's natural arm movement arc.
- Cycle valve fully 5x monthly during standby periods
- Inspect O-ring compression every 500,000 cycles
- Replace detent springs at 2-year intervals
