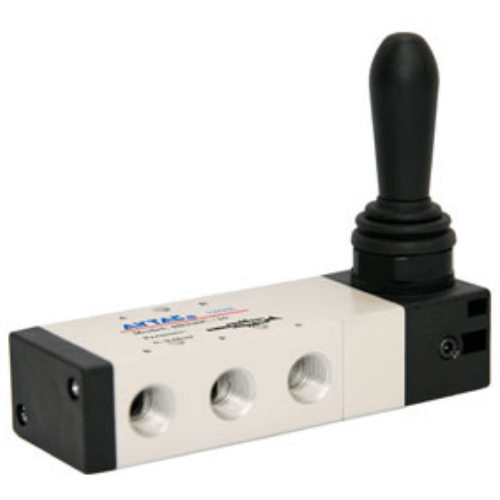

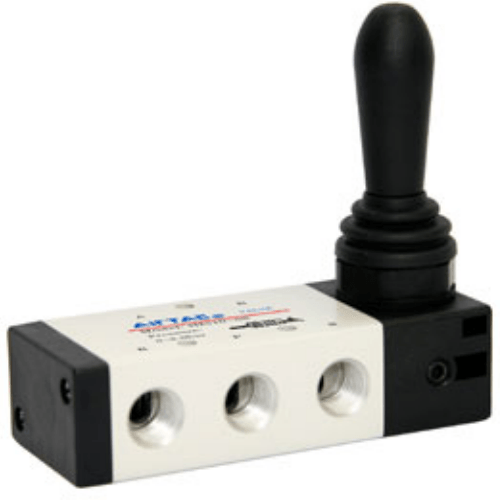

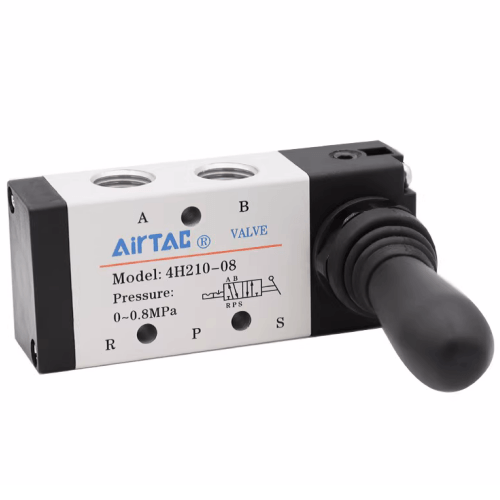

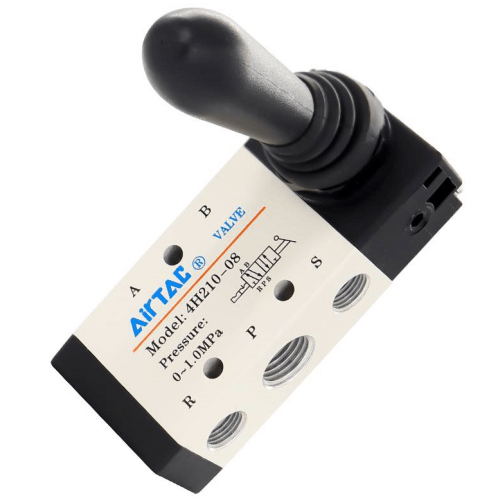

Airtac 4H Manual Valve 4H230E08
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H230E08 Manual Valve Technical Details
- Model: 4H230E08
- Type: 4-way/3-position manual directional valve
- Operation style: Mechanical lever actuation
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa
- Max flow rate: 750 L/min (ANR)
- Body material: Aluminum alloy (anodized finish)
- Seal material: NBR (Nitrile rubber)
- Temperature range: -5℃ to 80℃
- Weight: 340g ±5g
- Dimensions: 58mm(L) × 34mm(W) × 32mm(H)
- Mounting type: Sub-base or direct piping
- Port thread depth: 12mm (full thread engagement recommended)
- Leakage: <0.1 mL/min under rated pressure
Industrial-grade manual valve featuring positive center position and momentary action. The spring-return mechanism ensures automatic reset to neutral when released. Precision-machined spool design minimizes internal leakage, with hardened steel shaft for extended cycle life (>500,000 operations). Compatible with ISO 15407-1 standards.
- Emergency override in automated production lines
- Pneumatic system manual control stations
- Equipment maintenance lockout/tagout systems
- Educational pneumatic training rigs
- Mobile machinery requiring manual override
Installation guidance:
Lubricate pilot pins with ISO VG32 hydraulic oil before assembly.
For horizontal mounting, ensure lever movement plane aligns with
operator access direction. Maximum recommended actuation force: 25N.
| Property | Property Value |
|---|---|
| sku | 4H230E08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
