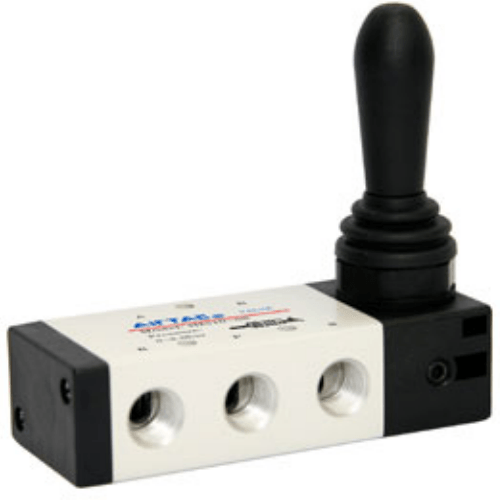

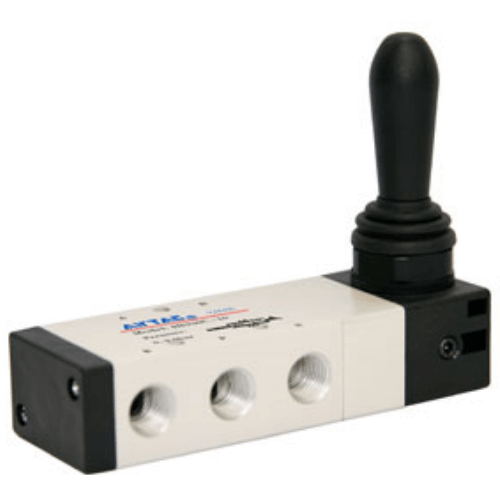

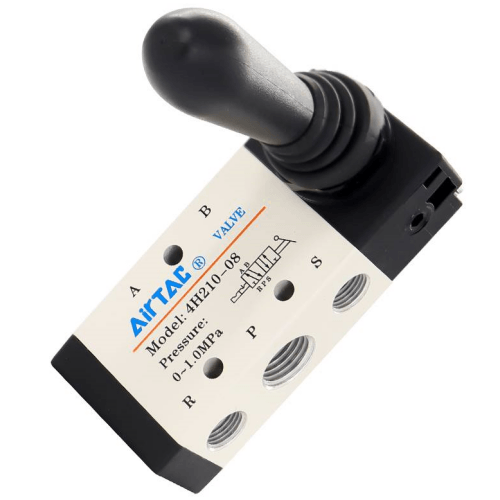

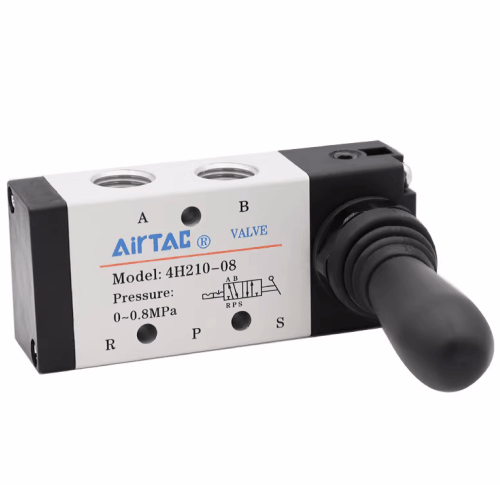

Airtac 4H Manual Valve 4H310-10
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H310-10 Manual Valve Technical Specifications
- Model: 4H310-10
- Type: 4-way/3-position manual directional control valve
- Operation style: Lever-operated with mechanical detent
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhaust)
- Port size: 1/4" NPT (G1/4 optional)
- Maximum pressure: 1.0 MPa (145 psi)
- Flow capacity: 850 L/min (Cv=1.5)
- Operating temperature: -5℃ to 60℃ (23℉ to 140℉)
- Seal material: Nitrile rubber (NBR) with stainless steel spring
- Body material: Anodized aluminum alloy
- Weight: 0.68 kg (1.5 lbs)
- Dimensions: 56mm(W) × 56mm(H) × 132mm(L)
- Mounting: Sub-base compatible (ISO 5599-1)
- Manual override force: ≤25N
Industrial-grade manual valve featuring positive center position and spring return mechanism. The 4H310-10 provides precise manual control of pneumatic circuits with tactile feedback through its ergonomic lever. Designed for high-cycle applications with wear-resistant seals and chrome-plated spool for smooth operation. Requires 5-40μm filtered air with lubrication (ISO 8573-1 Class 3).
- Production line emergency stop systems
- Material handling equipment control stations
- Pneumatic press safety override controls
- Training simulator panels for technical education
- Agricultural machinery manual operation modes
Installation note:
Mount in accessible locations with lever movement clearance ≥80mm.
Lubricate spool monthly with ISO VG32 pneumatic oil. Avoid side-loading
the actuator lever during operation.
Critical notice:
Not suitable for vacuum applications. Always depressurize system
before changing positions. Maximum cycle rate: 1 operation/second.
| Property | Property Value |
|---|---|
| sku | 4H310-10 |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
