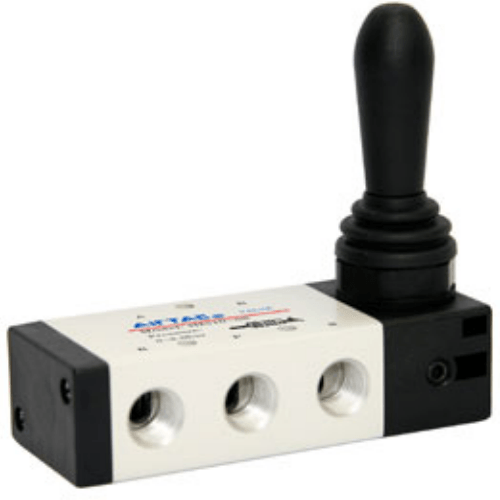

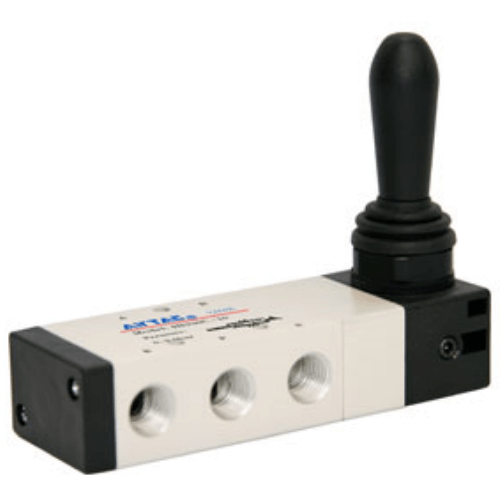

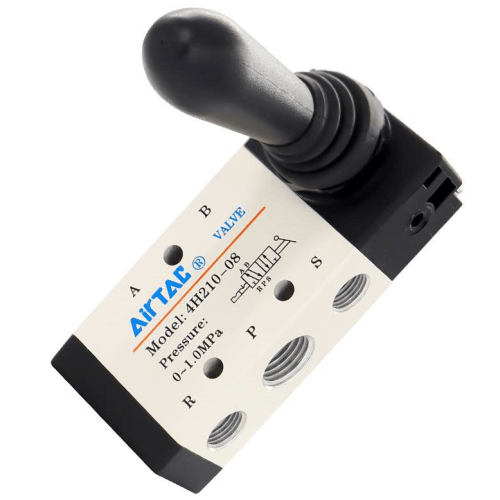

Airtac 4H Manual Valve 4H31008
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H31008 4H Series Manual Valve Technical Details
- Model: 4H310-08 (4H31008)
- Valve type: 4-way manual directional control valve
- Port configuration: 4 ports / 3 positions
- Port thread size: PT3/8 (G3/8 optional)
- Operating pressure range: 0.2–1.0 MPa
- Maximum flow rate: 750 L/min (Cv=1.3)
- Actuation method: Manual lever operation with detent positions
- Body material: Anodized aluminum alloy (AL6063-T5)
- Seal material: High-grade NBR (Nitrile) rubber
- Operating temperature: -5℃ to 80℃ (with dry air)
- Weight: 1.25 kg ±5%
- Dimensions: 125mm(L) × 48mm(W) × 45mm(H)
- Port positions: P (pressure), A/B (actuator ports), R/S (exhaust)
- Mounting options: Sub-base mounting (ISO 5599-1 compliant)
- Leakage rate: ≤5 bubbles/min (per ANSI/(NFPA)T3.21.4)
Industrial-grade manual valve with positive center position lock, designed for heavy-duty pneumatic systems requiring manual override capability. Features chrome-plated steel lever with ergonomic grip and dust-resistant detent mechanism. The T-slot spool design ensures smooth operation under high flow conditions.
- Production line emergency stop systems
- Hydraulic press mode selection
- Material handling equipment direction control
- Pneumatic training systems in technical schools
- Maintenance bypass circuits in automated machinery
Installation guidelines:
Lubricate pivot points with ISO VG32 hydraulic oil before initial use.
For vertical mounting, ensure exhaust ports face downward to prevent
debris accumulation. Tighten port fittings to 12-15 N·m torque.
| Property | Property Value |
|---|---|
| sku | 4H31008 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
