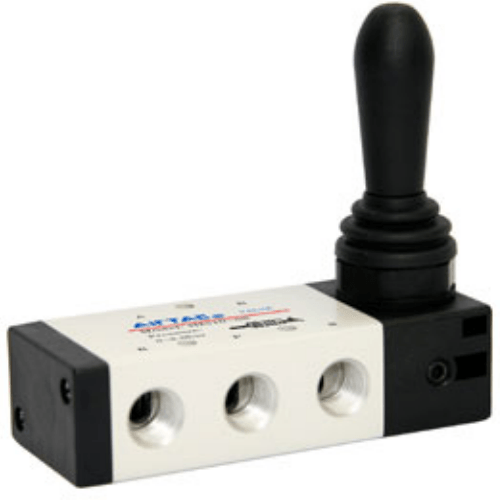

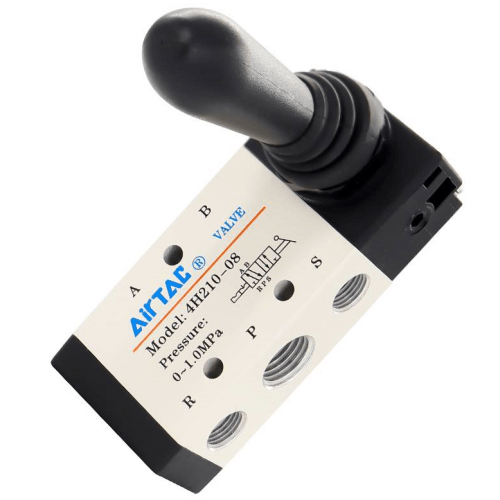

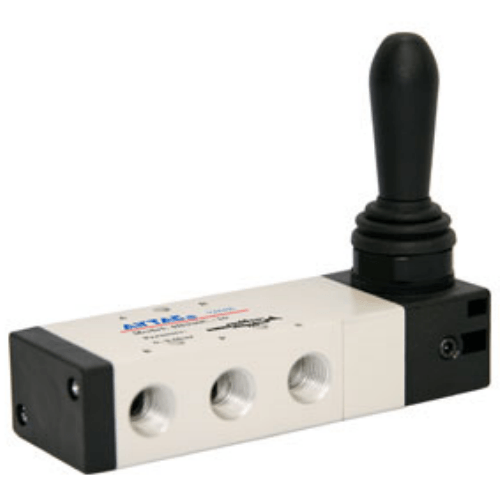

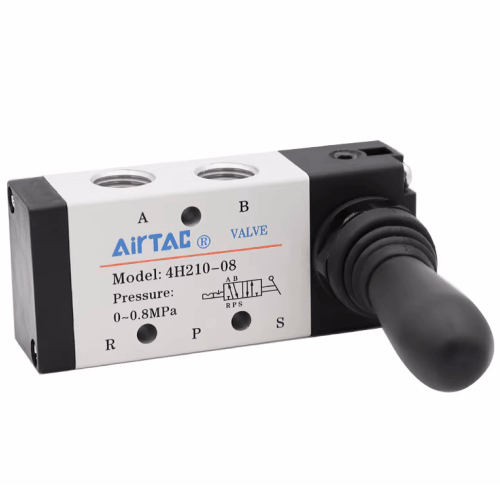

Airtac 4H Manual Valve 4H330E10
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H330E10 Manual Valve Technical Specifications
- Model: 4H330E10 (4H Series Lever-Operated Valve)
- Type: 3-position, 4-way closed center (Manual spring return)
- Port configuration: P (Pressure), A, B, T (Tank)
- Port size: 1/4" NPT (G1/8 optional)
- Operating pressure range: 0.2–0.8 MPa (29–116 PSI)
- Max flow capacity: 850 L/min (Cv=1.3)
- Body material: Die-cast aluminum alloy with hard anodizing
- Seal material: HNBR rubber (-20℃ to 80℃)
- Operating temperature: -5℃ to 60℃ (with lubricated air)
- Manual override: 90° lever operation with position lock
- Weight: 380g ±5%
- Dimensions: 52mm(W) × 52mm(H) × 98mm(L)
- Mounting: Sub-base compatible (ISO 5599-1 standard)
- Protection rating: IP40 (dust protected)
Industrial-grade manual directional control valve featuring tactile lever feedback and positive center position locking. The hardened aluminum construction withstands vibration in mobile applications. Includes visual position indicator window and requires no electrical connections, making it ideal for emergency shutdown systems.
- Hydraulic/pneumatic system manual override stations
- Production line emergency stop circuits
- Agricultural equipment manual control panels
- Training rigs for technical education
- Backup control for automated assembly systems
Installation note:
Lubricate pilot air with ISO VG32 oil mist (1:1000 ratio) for optimal seal life.
Mount lever within 30° of vertical plane for ergonomic operation. Allow 15mm
clearance for lever movement.
| Property | Property Value |
|---|---|
| sku | 4H330E10 |
| Position | 5-port 3-position |
| Port Size | PT3/8 |
